| Categories | Direct Buried Fiber Optic Cable |
|---|---|
| Brand Name: | SLR |
| Model Number: | GYTC8A |
| Certification: | CE ROHS |
| Place of Origin: | GUANGDONG CHINA |
| MOQ: | 3KM |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 300000KM / Day |
| Delivery Time: | 2 Weeks after payment |
| Packaging Details: | Wooden Drum |
| Product name: | GYTC8A Fiber Optic Cable |
| Application: | Aerial Cable |
| Number of conductors: | 24 cores |
| Type: | Fig 8 Aerial fiber optic cable |
| Jacket: | Black PE |
| Fiber type: | G652D |
| Strength member: | Steel Wire Strength Member |
| Company Info. |
| SL RELIANCE LTD |
| View Contact Details |
| Product List |

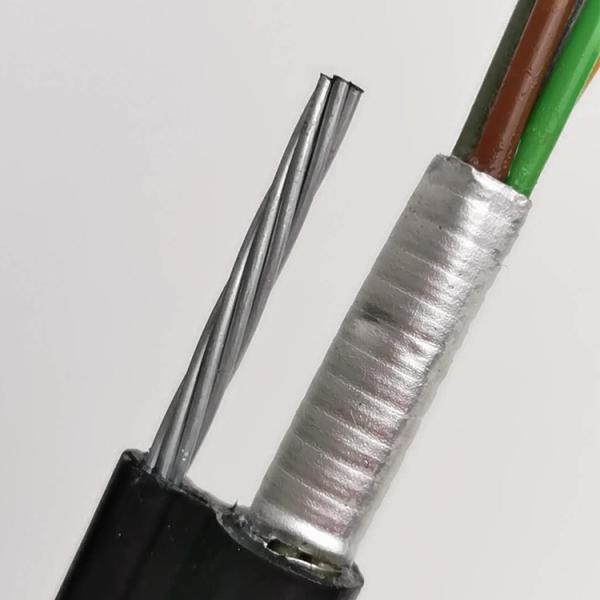

Self-Supporting Figure 8 GYTC8A 12/24/96core Aerial Fiber Optic Cable GYTC8A
GYTC8A is an outdoor use optical fiber cable suitable for self-support aerial applications.
Applications:
1: FTTX networks
2: Aerial Installation
Features:
1: Fig-8 Structure, Self-Supporting
2: Good water resistance performance
3: UV and moisture resistant design
4:Excellent Enviromental and Mechannical Performance
Chateristics:
1: Fiber upto 288 fibers with GEL-FILLED
2: Messenger wire: Steel wire
3:Armor Layer: AL tape
4: Sheath: UV MDPE
| Model | Fiber聽聽 聽count | Tube count | Filling rope count | Weight(kg/km) | Tension(N) | Crush (N/100mm) | Bending Radius Static / dynamic (mm) |
| GYTC8A-2~6Xn | 2~6 | 1 | 4 | 158 | According to the diameter of suspension wire | 300/1000 | 10D/20D |
| GYTC8A-8~12Xn | 8~12 | 2 | 3 | 158 | |||
| GYTC8A-14~18Xn | 14~18 | 3 | 2 | 158 | |||
| GYTC8A-20~24Xn | 20~24 | 4 | 1 | 158 | |||
| GYTC8A-26~30Xn | 26~30 | 5 | 0 | 158 |
| Cable Sheath Marking | ||||||||||
| XXXOFC 2021 GYTA53 XXCORE SM XXXXM | ||||||||||
| XXXOFC | manufacture's brand, (as client order) | |||||||||
| 2021 | manufacture year | |||||||||
| GYTA53 | cable type | |||||||||
| XXXXM | marks for meters | |||||||||
| Item | Parameter | |
| Fiber-G652D | Attenuation Coefficient | 1310nm dB/km ≤0.4 |
| 1550nm dB/km ≤0.3 | ||
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter | |
| Repeating bending | Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage. | |
| Tensile performance | Short term | 1500N The addition attention≤0.1dB,fiber strain ≤0.15% |
| Crush | Short term | 1000N/100mm The addition attention≤0.1dB |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage. | |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage. | |
| Parameters of single mode fiber : | |||
| Items | Description | ||
| G.652.D | G.655 | ||
| Attenuation (dB/km) | 1310nm | ≤0.36 | ≤0.40 |
| (After cable) | 1550nm | ≤0.22 | ≤0.25 |
| Cable cut-off wavelength (mm) | ≤1260 | ≤1450 | |
| Zero-dispersion wavelength (mm) | 1300～1324 | ≤1520 | |
| Zero-dispersion slope([ps/(nm2·km)]) | ≤0.092 | --- | |
| Dispersion slope(1550nm) ([ps/(nm2·km)]) | --- | ≤0.0084 | |
| 1310nm Mode field diameter (μm) | 8.7~9.5 | --- | |
| 1550nm Mode field diameter (μm) | 9.8~10.8 | 9.1~10.1 | |
| Core/Clad concentricity error (μm) | ≤0.6 | ≤0.6 | |
| Cladding diameter ( μm) | 125±0.7 | 125±0.7 | |
| Cladding non-circularity (%) | ≤1.0 | ≤1.0 | |
| Primary Coating diameter ( μm) | 235～250 | 235～250 | |
| (Before be colored) | |||
| Proof test level (kpsi) | ≥100 | ≥100 | |
| Atttenuation with bending loss(dB) | @1550nm,25 mm radius, 100 turns | ≤0.05 | ≤0.05 |
| @1550nm,16 mm radius, 1 turn | ≤0.05 | ≤0.05 | |
| Attenuation and bandwidth of multi mode Optical fiber: | |||||||
| Fiber type | 850/1300nm Attenuation(20℃) (After cable) | Overfilled Modal Bandwidth | Effective Modal Bandwidth | Application support distance on (at 850nm) | |||
| Typical value | Max value | 850/1300nm | 850nm | 40GBASE-SR4 / 100GBASE-SR101 | 10GBASE-SR | 1000BASE-SR | |
| unit | dB/Km | dB/Km | MHz．Km | MHz．Km | m | m | m |
| 50/125 | 3.0/1.0 | 3.3/1.2 | ≥500/500 | --- | --- | --- | --- |
| 62.5/125 | 3.0/1.0 | 3.3/1.2 | ≥200/500 | --- | --- | --- | --- |
| OM2+ | 3.0/1.0 | 3.3/1.2 | ≥700/500 | ≥950 | --- | 140 | 170 |
| OM3 | 3.0/1.0 | 3.3/1.2 | ≥1500/500 | ≥2000 | 150 | 300 | 550 |
| OM4 | 3.0/1.0 | 3.3/1.2 | ≥3500/500 | ≥4700 | 750 | 1000 | 1100 |
|
