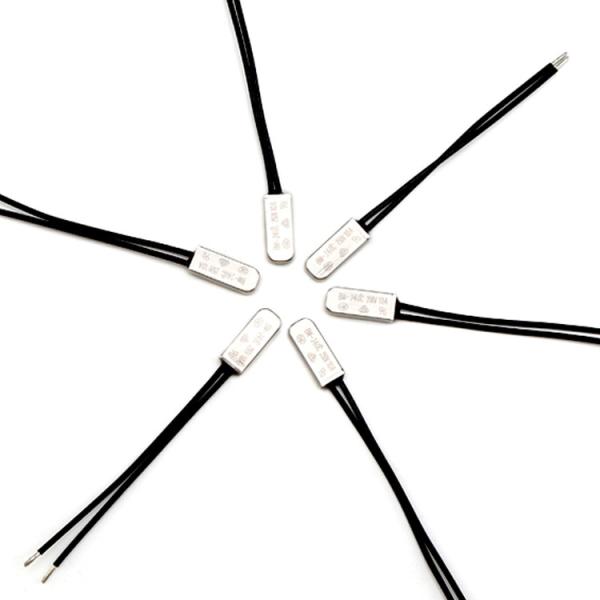

250V 10 AMPS 190C Thermal Protector Normally Closed

250V 10 AMPS 190C Thermal Protector Normally Closed

BW thermal switch.pdf
Product Description

Please Note :

• During installation, the temperature switch should be completely close to the mounting surface of the tested appliance.
• Do not collapse or deform the plastic / metal shell during installation.
• For metal temperature controller, when using, do not remove the insulating sleeve to avoid electric leakage. Not suitable for working in water.
• Not suitable for air temperature sensing, only applies to contact sensing.

Product Features

• Specially designed for hair straightener
• small size
• quick action
• accurate temperature control
• large current control
• long service life

Application
Wide used in home appliance's motor and electrical equipment, such as air conditioner motor, transformer, thermal appliances, etc

Metal & Plastic Shell

Specification
(BW thermal switch, thermal protector, bimetal thermostat)

Dimension & Structure
BW-A(10A) is metal case while BW-B(5A) is plastic case.

Standard Package

100pcs per bag, 20000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

•
• Company warehouse
•
• 250V 10 AMPS 190℃ High-temperature Normally Closed Thermal Protector Automatic Reset with insulation shrink
• 190C Thermal Protector Normally Closed
