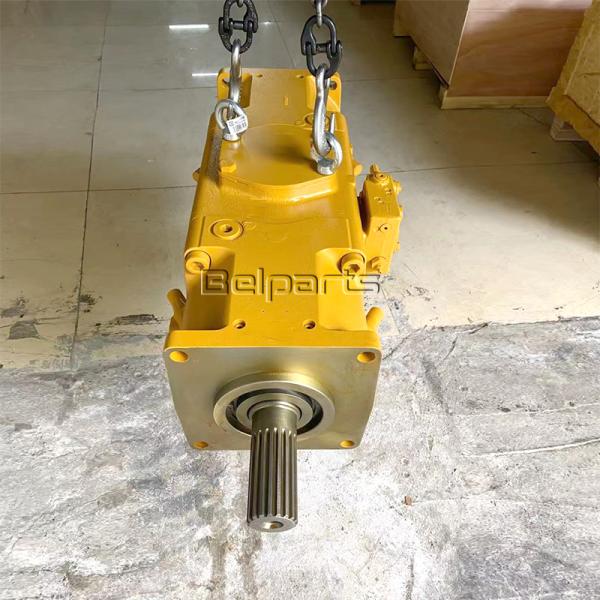

Excavator Hydraulic Pump E374 2977684 2W4332 Hydraulic Main Pump For erpillar

Excavator Hydraulic pump E374 2977684 2W4332 Hydraulic Main Pump For erpillar

Main excavator parts as below:

PARTS

PARTS NAME

Hydraulic parts

pump assy, final drive, gearbox, drive motor, swing device, swing motor, piston shoe,

cylinder block, valve plate, set plate, travle motor, rotary motor and gearbox, main valve,

steering pump, gear pump, valve block, control valve

Engine parts

Cylinder Block, Cylinder Head, Cylinder Liner, Cylinder Gasket, Overhaul kit,Crankshaft,

Camshaft, Main Bearing,Water Pump, Oil Pump, Air Compressor, Fuel transfer pump,Piston,

Piston Pin, Piston Ring, liner kits,Connection Rod, Bushing, Gear, Gear Housing,

Belt Tensioner

Picture of Hitachi ZX870 ZX870-5 ZX870-5G ZX670 Hydraulic main pump

Aggregate

Part No	Part Name	Price request
2977684	PUMP & MTG GROUP-MAIN HYDRAULIC

List of spare parts

#	Part No	Part Name	Qty.
1	2W4332	HOSE ASSEMBLY, -6 x 29.5 in. (749 mm)	1
2	1968173	ELBOW	1
3	2228350	COUPLING GROUP-PUMP	1
4	2331153	CLAMP	1
5	2331154	PLATE	1
6	2331155	TUBE AS	1
7	2331194	COVER	1
8	2959676	PUMP GROUP-MAIN HYDRAULIC	1
9	0672551	CLAMP	1
10	6V5043	SEAL-O-RING	1
11	2147568	SEAL-O-RING (11.89-MM ID)	1
12	6V7681	SEAL-O-RING	1
13	7X0314	BOLT-PLT (7/16UNC X 3)	10
14	7X0316	BOLT-PLT (7/16UNC X 3 1/2)	2
15	7X2537	BOLT-PLT (M8 X 1.25 X 35)	2
16	8T4121	WASHER-HARD (11X21X2.5-MM THK)(M10X1.50X30MM)	1
17	8T4123	WASHER-PLATED (22X35X3.5-MM THK)	4
18	8T4136	CAPSCREW (HEX HD) (M10 X 1.50 X 25L GR 10.9)	1
19	8T4141	BOLT-PLT (M20 X 2.5 X 70)	4
20	8T4224	WASHER-TO ASSEMBLE VALVE AS AND PLATES	2
21	8T5360	WASHER-HARD (FOR USE WITH 7/16 IN BOLTS)	12
		REFER TO HYDRAULIC INFORMATION SYSTEM
		METRIC PART
		SEPARATE ILLUSTRATION

Supply Ability

Supply Ability: 500 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: First layer is packed in plastic and the second in wooden s

Port: Huangpu

Lead Time

Quantity(Pieces)	1 - 10	11 - 100	101 - 1000	>1000
Est. Time(days)	1	3	7	To be negotiated

Our advantages
Strong support	We have factory product support and financial support, so the product cost is very low , and the price given is also pretty acceptable .
Sufficient product information	We have detailed parameters , so send us the right model and correct number , we can supply the exact product .
Salesperson with professional knowledge and abundant experience	Belparts has been developing on this area for more than 7 years , so we have wealthy experience .
Strict and integral company system	We will try our best to obey customer’s delivery time . Before delivering your products , we must check the part number or pictures of the products carefully to let our customers receive high-quality and right-quantity goods .
Good management system	No matter how big or small the trade is , as long as customers place the order , we will provide exporting service for free .
Good service attitude	If you have any questions about the product , after knowing the situation , we will help the customer to solve the problem at the first time . As long as customers’ requirements are reasonable , we will endeavour to satisfy them .

FAQ

1 . What kind of information I need to send you?

For different parts it need distinct information , for hydraulic pump , it needs the nameplate and picture . For the final drive , it needs the number of the frame hole and sprocket hole ,and the inner diamter of the sprocket . If we need information , we will ask you to check .

2 . Do you have stock?

For our main products , we have stock for most of them , the factory supplier warehouse is near us , if the parts we don't have stock , we will tell you before you order it .

3 . Can I get the picture of the part I need before payment ?

For almost parts , we can send you the pictures of it , but some parts we don't have picture , but anyway will show you before the shipment .

4 . When will the delivery be arranged after the payment

After we received the money , we will arrange the shipment within 1 days ;

5 . How can I do if there is something wrong with the items ?

First of all , I have confidence in the quality of our products , if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item .

6 . What is your advantage products ?

Our advantage products are final drive / hydraulic pump / swing gearbox / travel gearbox / swing motor / hydraulic parts . If you need any parts for crawler excavator , you can ask us . We will try our best to find the parts what you need .

Product Tags:


*From:	Your email address is incorrect!
*To:	GZ Yuexiang Engineering Machinery Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Excavator Hydraulic Pump
Brand Name:	Belparts
Model Number:	E374
Certifiion:	OEM
Place of Origin:	China
MOQ:	1PCS
Price:	Negotiated price
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	500 pieces per month
Delivery Time:	2-5days
Packaging Details:	Wooden
Model:	E374
Part number:	2977684 2W4332
Apply for:	Excavator
Material:	Steel
Warranty:	6 months, 6 Months
Part name:	erpillar PUMP PISTON
