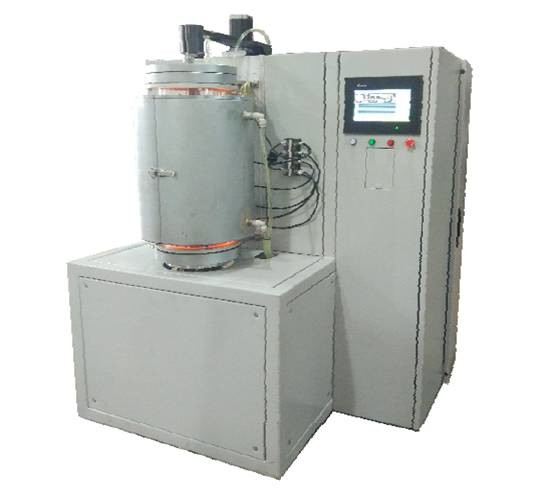

PCD/PCBN Inserts Vacuum Brazing Machine 20KW 380v Water Cooling

ZT-ZKHJ180E Vacuum Brazing Machine

Based on market competition and diversified needs of customers, our company developed and produced ZT-ZKHJ180E vacuum brazing machine, which adopts diffusion pump for high vacuum system, simplified structure, automatic control.

Materials: Natural Diamond, Mono Crystal Diamond, PCD, PCBN, CVD and Cermet.

Substrate Materials: Cermet, Tungsten Carbide, Steel, Stainless Steel, Steel Alloy, Ceramics, etc.

Design Features:

• PLC control, SCR heating, touch panel, automatic running after simple setting.

• Low vacuum mechanical pump and high vacuum diffusion pump.

• No oxidation, clean surface and environment-friendly.

• Brazing strength is 2 times higher than induction welding.

• The machine is fully automatic and once loaded, the cycle time is approximately

70-120 minutes.

• Brazing quantity is more than 500 pcs (CNGA1204), reduces total cost.

• Reduction of distortion, even a very small tool insert can be brazed.

• Larger chamber can be customized.

Originally founded by graduates from Tshinghua university, and we was belong to Tshinghua universtity as a R&D . At 2003, CHN-TOP become a independent company which focus on diamond tools(PCD, PCBN,MD,ND,CVD) industries, produce high precision process equipments.(PCD PCBN tools grinders, vacuum brazing machines, laser cutting machines, chip breaker machines);We offer pre-machining services(PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing，etc.), and distribute world famous PCD and PCBN blanks;Also supply professional consultation and advanced technical services, we are your only one stop shop in the field of ultra-hard materials processing with good reputation in global market. Our business scope is :

• CNC and manual grinders for PCD/PCBN milling, reaming, turning and drilling tools ,etc.
• High precision laser cutting machine for PCD/PCBN/Ceramic and some other valuable materials
• Special laser engraving machines for chip breaker and positioned hole
• Automatic vacuum brazing machine and paste, widely used in PCD/PCBN/CVD/Cardbide, etc.
• Offer diamond cutting tools' pre-machining: laser cutting, carbide notching, brazing, chip breaker
• Ultra-hard material machinining: lampping, grinding and polishing, etc.
• Provide high quality PCD/PCBN blanks and distribute world famous brand materials.
