250L Non Metallic Mineral Bead Mill Machine Wet Grinding With 55 KW Motor And Gear Pump

250L Non Metallic Mineral Wet Grinding Bead Mill Machine With 55 KW Motor And Gear Pump

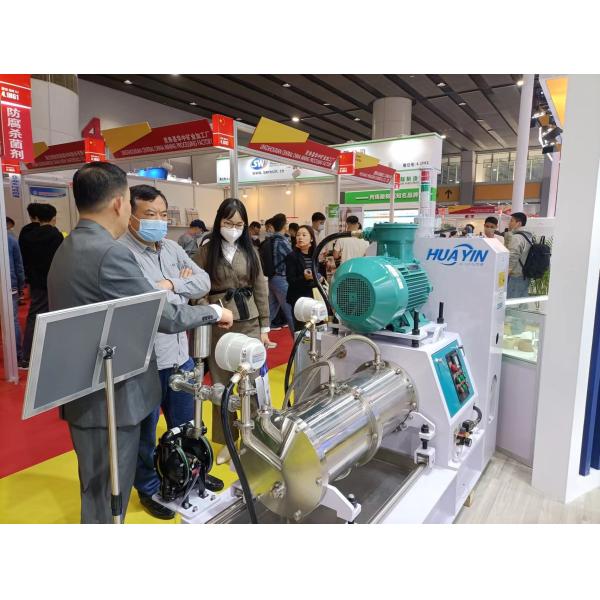

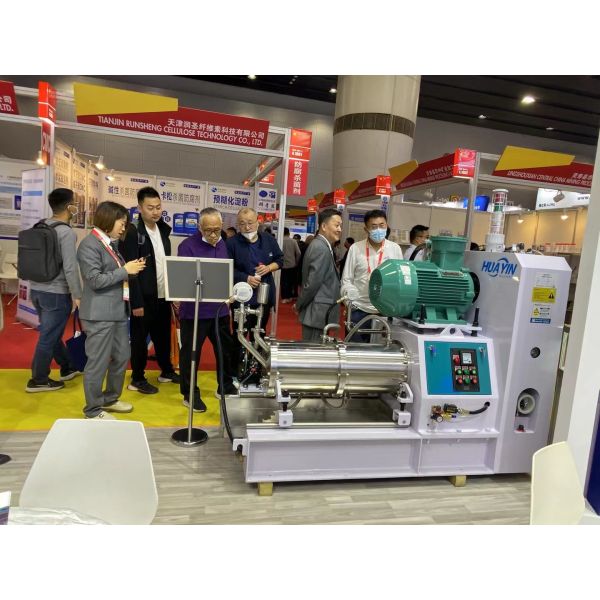

Allwin showed bead mill machines in different Exhibitions in virous industry. Each time there were much potential customers paying much attention and counselling. Thses following pictures show the 30L bead mill machine, as its much more proper for transportantion and booth space.

1. 250L Non Metallic Mineral Bead Mill Technical Data

No	Main Parameters	SP250	Note
1	Explosion-proof motor (kW)	55 kW /75KW	( Non Ex-proof)
2	Effective volume of grinding chamber (L)	250L
3	Water pressure (MPa)	0.3
4	Cooling water consumption (L/min)	2.5 -3.5m3/h	Advise offer the Cooling water less 10°C
5	Dimensions:L*W*H (mm)	2500*1500*2100
6	Weight (kg)	2500

2. 250L Bead Mill Machine Configuration Instructions

No	Main parts	SP250 Non Explosion-proof	Notes
1	Material of External vessel	SUS 304 stainless steel
2	Material of Inner grinding vessel	9Cr18Mo Wearable Steel /stainless steel
3	Material of Dispersing shaft	40Cr with hard chromium plating
4	Material of Dispersing disk (agitator disk)	Cr12Mov steel/SUS 304 stainless steel
5	Feeding and discharging end covers on the cylinder	SUS 304 stainless steel
6	Static discharge screen ring	Wire Wound screen ring with 304.Gaps: 0.5mm.
7	Mechanical seal	Intelligent double mechanical seal with mandatory screwing-cooling system
8	Feeding pump	1.5” ARO diaphragm pump;	IngersoII Rand, gear pump optional
9	Appliance configuration	Non Explosion-proof machine, suitable for water base materials, motor 55/75kW.Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type)
10	Fasteners and connecting parts	Stainless steel clamp-type connecting parts	Quick and convenient

3. Display of 250L Bead Mill Machine

4. Advantages Of Bead Mill Machine

A. Successful cases in non metallic mineral industry, like titanium dioxide,talc,kaolin, clay, etc.

B. Customized design and research of dispering and grinding structure according to different wet grinding slurry. Each niche field has a few structural differences(like different shapes of discs, virous diameters of discs,turbin centrifugal separator may be adjust,etc.)

C.Laboratory bead mill can do the testment if you don't believe and make a testment will feel safe.

Allwin Machine & Equipment Co., Ltd. is a Chinese national high-tech enterprise and specialized manufacturer of wet grinding, dispersing equipment, and production lines. Established in 1993 in Chongqing, China, we have been certified with ISO9001:2015.

With 30 years of industry experience, Allwin is committed to helping providing customers with full-process services from construction planning, product supply, to providing complete production lines, personnel training, and lifelong maintenance services.

Allwin specializes in the research and production of bead mills, mixers, dissolvers, customized production lines, tanks, and zirconia beads, with 30 years of industry experience and proficient in wet grinding core technology. We have sold more than 10,000 devices, serving 180 cities in China and exporting products to multiple countries.

Our customer base mainly covers Battery, Ceramics, Nanomaterials, Coatings, MLCC/LTCC, Pharmaceuticals, Food, Titanium dioxide, Personal Care, Papermaking, Inks, Pesticides, Graphene, Metallic and Non-metallic Minerals and more.

We have a professional R&D team, After-Sales Service team, Process Production department, run a Product Lifecycle Management (PLM) system. Our equipment is excellent, from materials to parts are all produced by CNC. The quality characteristics of our products are stable, reliable, interchangeable well, Precise, low noise, and long life. As a manufacturer, we comply with the ISO9001 standard strictly.

Allwin workshop:

Allwin Service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

R & D Team：

1. Allwin has been authorized with more than 11 patents and established cooperation with universities. Allwin has more than 12 engineers for Design and optimizing.
2. Whole production solution: Allwin can offer the Whole production solution for you, from Dispersing to grinding, from accessories to grinding media.

Sales Team:

      Allwin have professional sales team for you, before order we will recommand the suitable mills for your according to your requiriments and materials characteristics.

Quality Team:

       Allwin have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Production Team:

•      Advanced machining center and skilled operators.
