Round UFO LED High Bay Lights For Warehouse And Shopping Mall

Categories	LED High Bay Lights
Brand Name:	Die Casting Man
Model Number:	HB-04-250
Certification:	CE ROHS ENEC
Place of Origin:	China
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability:	10000PCS/Month.
Delivery Time:	7-30 days base on order quantity
Packaging Details:	Carton box
Fixture Color:	Grey
Input Voltage:	AC85 - 265V
Working Ambient Temperature:	-30℃ - 50℃
IP Rating:	65
Lamp Power:	250w
IK Grade:	IK08

Contact Now

Add to Cart

Company Info.

NingBo Die-Casting Man Technology Co.,ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

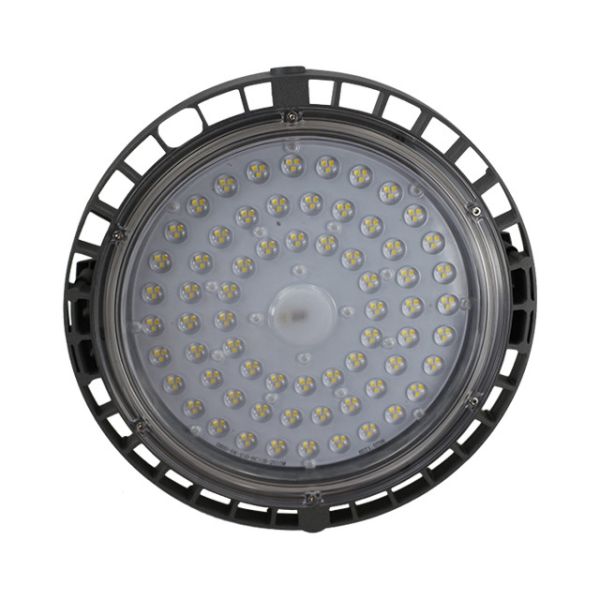

Round UFO LED High Bay Lights For Warehouse And Shopping Mall

250W Led High Bay Light Fixtures For major Industrial Area with 5 dimensions

Product description:

Code	ZHHB-04-100	ZHHB-04-150	ZHHB-04-200	ZHHB-04-250	ZHHB-04-300
Power	100W	150W	200W	250W	300W
PC lens degree	30°60°90°	30°60°90°	30°60°90°	30°60°90°	NO
Color Temperature	3000-6000K	3000-6000K	3000-6000K	3000-6000K	3000-6000K
Efficiency	＞120LM/W	＞120LM/W	＞120LM/W	＞120LM/W	＞120LM/W
Voltage	AC90-305V 50/60Hz	AC90-305V 50/60Hz	AC90-305V 50/60Hz	AC90-305V 50/60Hz	AC90-305V 50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
CRI(Ra)	Ra≥70	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Ambient Temperature	-20-45℃	-20-45℃	-20-45℃	-20-45℃	-20-45℃
Ambient Humidity	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH
Lifetime(hrs)	50000	50000	50000	50000	50000
IP Rate	IP65	IP65	IP65	IP65	IP65
Light Angle	60/90/120°	60/90/120°	60/90/120°	60/90/120°	60/90/120°
Net Weight	3.14kg	3.3kg	3.9kg	3.9kg	5.9kg
Gross Weight	3.8kg	4.0kg	4.8kg	4.8kg	6.7kg
Packing Size	380380185mm	380380185mm	430430190mm	430430190mm	560564237mm

Model	YAHB-04 series
Input Voltage	85-265VAC, 50/60 HZ
LED Light Source	3030 OR 5050
LED Power	80-120w
Led Luminous Efficiency	130 lm /W
Led Initial Luminous Flux	8800-14400 Lm
Average Illuminance (120 degree)	4M	125 lux
	6M	56 lux
	8M	31 lux
Illuminance Area (120 degree)	4M	1250 cm diameter
	6M	1875 cm diameter
	8M	2500 cm diameter
Color Temperature	2700K 3000K 4500K 5700K 6000K
Color Rendering Index	Minumum 70
Light Distribution	Symmetric Circle Spread
LED Junction Temperature	≤75°C ( Ta=25°C)
Working Temperature	-40°C ~ 50°C
Storage Temperature	-40°C ~ +65°C(Best 25°C)
IP Rating	IP65
Net weight	5.6 Kg
Life-span	>50000H
Power Cord	0.75mm2 triple shield wire
Connecting Wire	Brown	L live
	Blue	N Neutral
	Yellow/Green	G Earth
Certificate	CE ; RoHS ; UL(Power supply only)
Light Fixture Color	Black

Details:

Features
- with patent housing design
- Energy savings up to 77% compared to HID systems

- Long lifetime

- Comfortable light with low glare ratings

- Unique flat design for various mounting

- Wide Beam, Narrow Beam & High Rack Optic Beam

- IP66&IK08
