| Categories | Industrial Electric Hot Water Boiler |
|---|---|
| Brand Name: | WILFORD |
| Model Number: | CWDR |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 stand |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15 stand/stands per Month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | Packing in wooden box |
| Rated thermal power: | 0.7-2.1MW |
| Input power: | 720-2160KW |
| Input current: | 1080-3240A |
| Rated voltage: | 3N AC 50HZ 380V |
| Overall size: | Depends |
| Weight: | 1.65-3.96T |
Advanced Electric Hot Water Boiler For Cleaning And Washing Industry
Product introduction
1 . Green and environmentally friendly boiler, quiet, clean, in line with strict environmental requirements.
2 . The heating tube is made of imported alloy steel material with
high quality and long service life.
3 . The design of the control cabinet, the standard specification,
the protection level is very high, to ensure the stable operation
of the boiler.
4 . Electricity is the source of power, no smoke, low heat loss, no
harm to the environment.
5 . When the thermal power reaches more than 300,000 kcal, we use
the method of separating the furnace body and the control cabinet.
6 . Equipped with high performance controller.
7 . High degree of automation, to a certain extent, improve work
efficiency.
Parameter
| Type | CWDR0.7-95/70 | CWDR1.05-95/70 | CWDR1.4-95/70 | CWDR2.1-95/70 | ||
| Project | Unit | |||||
| Rated thermal power | MW | 0.7 | 1.05 | 1.4 | 2.1 | |
| Total heating capacity | 104kcal | 60 | 90 | 120 | 180 | |
| Rated working pressure | MPa | Ordinary Pressure | ||||
| Input Power | KW | 720 | 1080 | 1440 | 2160 | |
| Input current | A | 1080 | 1620 | 2160 | 3240 | |
| Rated Voltage | V | 3N AC 50HZ 380V | ||||
| Power×Group | KW×P | 36×20 | 36×30 | 36×40 | 36×60 | |
| Water inlet diameter | DN | 100 | 80×2 | 80×2 | 150 | |
| Water outlet diameter | DN | 100 | 100 | 100 | 150 | |
| Blowoff valve diameter | DN | 50 | 50 | 50 | 50 | |
| Overall size | Length | mm | 2500 | 2750 | 3100 | 3500 |
| Width | mm | 1350 | 1500 | 1750 | 1960 | |
| Height | mm | 1700 | 2050 | 2200 | 2350 | |
| Weight | kg | 1650 | 1870 | 2500 | 3960 | |
Feature

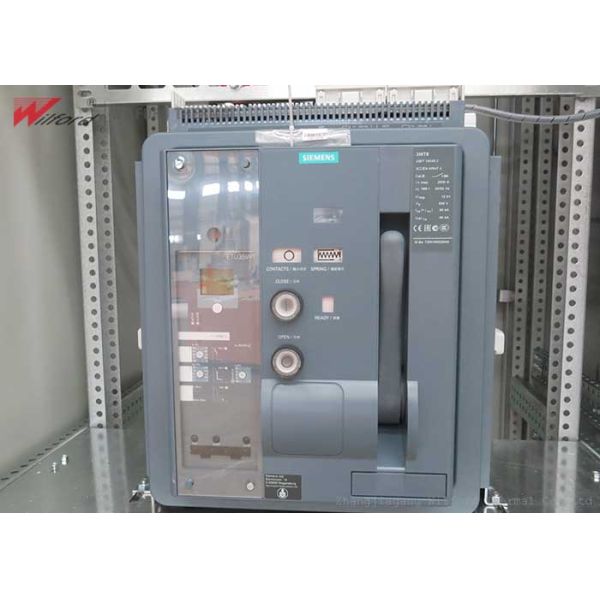

Product picture

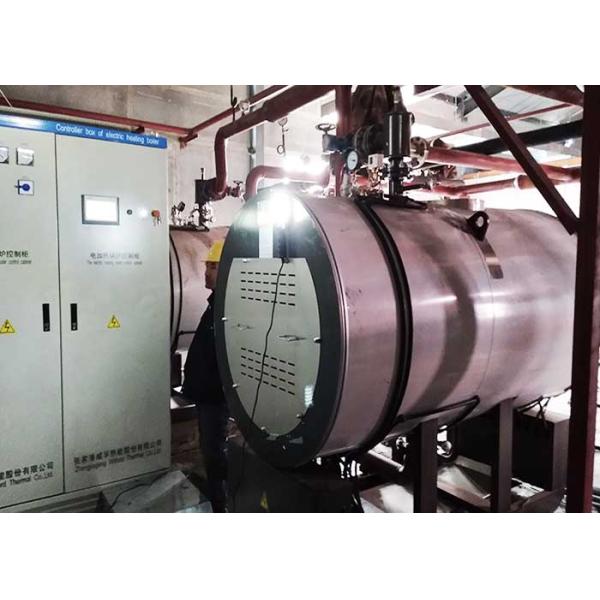

Project case diagram

|
