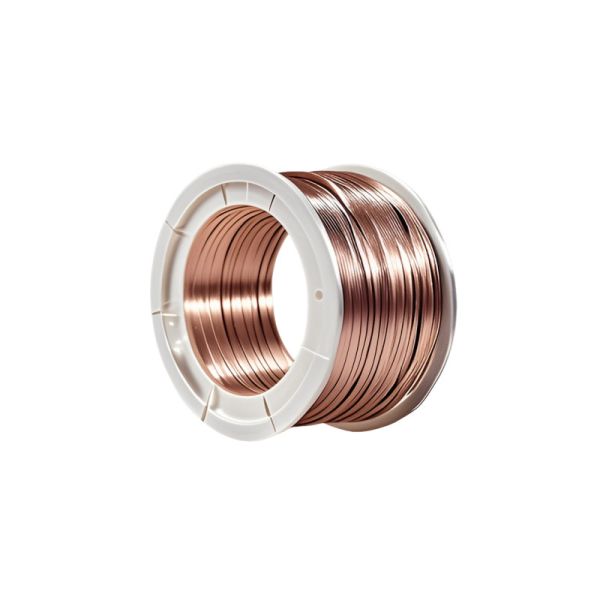

| Categories | Beryllium Copper Wire |
|---|---|
| Brand Name: | WINNER |
| Model Number: | Winner-B2 |
| Certification: | ISO9100 |
| Place of Origin: | CHINA |
| MOQ: | 1PC |
| Price: | 999 |
| Payment Terms: | L/C, Western Union, T/T Supply Ability |
| Delivery Time: | 5-8 WORKING DAYS |
| Packaging Details: | Roll, Neutrial Packing or with OEM LOGO |
| Surface Treatment: | Bright, Oxidized, Tin Plated |
| Application: | Springs, Connectors, Switches, Electrical Contacts |
| Tensile Strength: | 1200-1500 MPa |
| Elongation: | 10-20% |
| Thermal Conductivity: | 120-150 W/mK |
| Shape For Available: | Coil Wire |
| Typical Application: | Electrical and Industrial |
| Hot Working: | Have good hot working property |
| Supply Ability: | 100000 rolls per month |
| Product Type: | Bonding Wire |
| Wire Diameter: | 0.001 inches |
| Coating Thickness: | 0.001mm |
| Material: | Copper |
| Coating: | Berullium |
| Length Meters: | 500/1000 |
| Corrosion Resistance: | High |
| Purity: | 99.999% |
| Bonding Method: | Ultrasonic |
| Temperature Range: | -40°C to 200°C |
| Surface Finish: | Bright |
| Conductivity: | 98% |
| Package Size: | 100 meters |
| Bond Strength: | High |
| Package: | Spool |
| Company Info. |
| SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
Beryllium Copper wire is an outstanding material as it combines excellent formability with extremely high strength properties once it undergoes the aging process. During aging, the internal structure of the wire is modified, leading to enhanced mechanical characteristics.
When it comes to applications, Beryllium Copper wire is widely used
in various industries. In the field of springs, it provides the
necessary elasticity and durability. Springs made from this wire
can withstand repeated compression and extension without losing
their shape or mechanical integrity. For connectors, its high
strength ensures a stable and reliable connection between different
electrical components. This is crucial in applications where a
continuous and efficient electrical flow is required, such as in
complex electronic devices. In switches, the wire's properties
enable smooth operation over numerous cycles. It can endure the
mechanical stress caused by repeated on - off actions. In the
automotive industry, it is used in parts where a combination of
strength and formability is essential. These parts can include
components within the engine compartment that are subject to
mechanical forces and temperature variations.
Moreover, special heat treating of the wire at the mill gives rise
to a “Mill Hardened” (HM) tempered Beryllium Copper wire. This
unique manufacturing process imparts specific mechanical properties
to the wire. Once in this state, the wire can be easily formed into
the desired shape through processes like bending, coiling, etc.
What's more, it can be directly used in applications without the
need for any additional heat treatment. This not only saves time
and cost in the production process but also ensures consistent
quality of the final products made from this wire.
| Annealing Range (Min) | 1425 °F |
| Annealing Range (Max) | 1475 °F |
| Density | 0.298 lb/in³ |
| Electrical Resistivity (Annealed) | 47.1 Ω·cir-mil/ft @ 68 °F |
| Electrical Conductivity (Annealed) | 22% IACS @ 68 °F |
| Thermal Conductivity | 62 Btu/ft²/ft·hr/°F @ 68 °F |
| Coefficient of Thermal Expansion | 9.9 per °F (68-572 °F) |
| Modulus of Elasticity (Tension) | 19 ksi |
| Modulus of Rigidity (Tension) | 7 ksi |
| Melting Point (Solidus) | 1,700 °F |
| Melting Point (Liquidus) | 1,900 °F |
Application:
1.What kind of Enameled copper wire do Winner produce?
We focus on research and development of selfbonding magnet round copper wire, fine polyurethane magnet wire, selfbonding litz copper wire and selfbonding silk covered wire.
2.What's diameters available of the Enamelled copper wire ?
We specialize in fine and ultra fine enamelled copper wire,diameters available of our products is Φ0.018-0.50mm.
3.What's selfbonding enameled copper wire?
Selfbonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin.This adhesive has a bonding feature, which is activated
by heat or solvents.
Once activated the adhesive bonds turn to turn windings into a compact self supporting coil.
The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications
as bobbins, tape, varnishing, or impregnation may be eliminated.
4. Is possible to get any sample of selfbonding enamelled copper wire that you have in production?
Of course you can!
|
