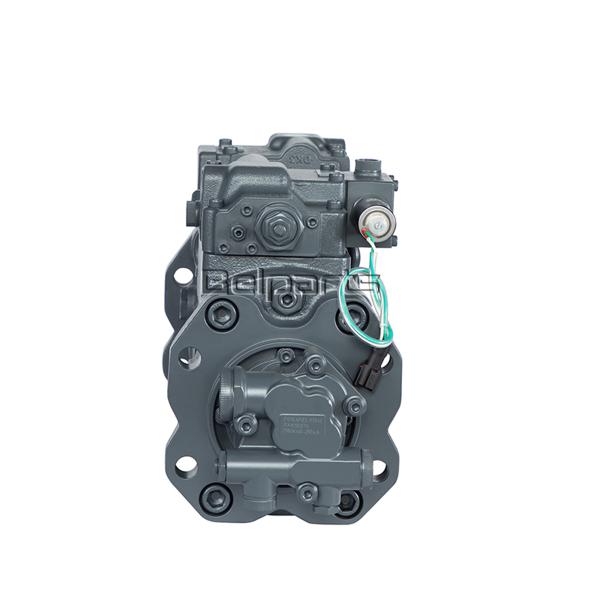

Belparts Excavator Main Pump SOLAR 130 Dx130 Hydraulic Pump 2401-9186 For Doosan

Belparts excavator main pump SOLAR 130 dx130 hydraulic pump 2401-9186 for doosan

Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:SOLAR 130 dx130
Packing Size:84*38*49
Part number:2401-9186
Pressure:Standard, High Pressure

Specifiions Of Excavator Hydraulic Pump

Product Name	Excavator Hydraulic Pump
Brand	Belparts
Machine model	SOLAR 130 dx130
Packing Size	843849
Part number	2401-9186
Pressure	Standard, High Pressure

#	Part No	Part Name	Comment	Qty.	Price request
157	113454	SPRING, CYLINDER		18
158	113455	SPACER		2
211	113424A	PLATE, SHOE		2
212	718420	SWASH PLATE ASS'Y		2
212	717009	SWASH PLATE ASS'Y		2
250	718423	SUPPORT & SWASH		2
251	113425A	SUPPORT, SWASH		2
261	113426	COVER, SEAL(F)		1
271	113428	CASING, PUMP		2
310	704208	VALVE BLOCK ASS'Y		1
312	113429A	BLOCK, VALVE		1
314	120412	PLATE, VALVE(L.H.)		1
401	113386	BOLT, HEX SOCKET HEAD		8
406	205517	BOLT, HEX SOCKET HEAD		4
467	108843	PLUG, VP		3
469	108848	PLUG(PF3/8)		2
490	211665	EXPANDER		15
530	718417	TILTING PIN ASS'Y		2
531	113379	PIN, TILTING		2
532	113381	PISTON, SERVO		2
534	113382	STOPPER(L)		2
535	113383	STOPPER(R)		2
548	113380	PIN, FEEDBACK		2
702	201658	O-RING (1BG-30)		2
710	201675	O-RING 1BG85		2
717	201634	O-RING 1BG-120		2
719	201633	O-RING 1BG-115		2
724	201765	O-RING 1BP8		18
726	201700	O-RING 1BP14		2
728	201710	O-RING 1BP18		3
732	201706	O-RING 1BP16		2
774	212029	SEAL, OIL		1
789	208454	RING, BACK-UP	5 kg	2
792	200034	RING, BACK-UP		2
808	201557	NUT, HEX (ORNM16		4
824	202604	RING, SNAP		2
885	216516	PIN, 6X12		2
886	200678	PIN, SPRING D6X14	2 kg	4
901	212033	BOLT, EYE		2
953	211227	SET, SCREW		2
954	113388	SCREW, ADJUSTING		2
*	2401-9236AKT	SEAL KIT, PUMP		1
-	2401-9236	MAIN PUMP		1
-	2401-9236B	MAIN PUMP	85 kg	1
111	113446A	SHAFT, DRIVE(FRONT)		1
113	120413	SHAFT, DRIVE(REAR)	1 kg	1
114	113448	COUPLING, SPLINE		1
123	212031	BEARING, ROLLER		2
124	212032	BEARING, NEEDLE		2
127	113449	SPACER, BEARING		4
141	704212-PH	CYLINDER BLOCK ASS'Y(R.H)		1
142	704237-PH	CYLINDER BLOCK ASS'Y(L.H)		1
151	715220	PISTON & SHOE ASS'Y		2 SET
153	113452	PLATE, PUSH		2
156	113453	BUSH, SPHERICAL		2

Model	Nominal displacement(ml/r) Fore pump/ hind pump	Pressure(MPa)		Speed(r/min)			Volumetric efficiency(≥%) Fore pump/ hind pump	L1	L2	L	Weight (kg)
		Rated	Max	Min	Rated	Max
CBHY-G36/F3.5-ATφ*	36/3.5	25/20	28/25	800	2500	3000	92/85	123	123	205	6.8
CBHY-G36/F4.5-ATφ*	36/4.5						92/90			208	7.0
CBHY-G32/F3.5-ATφ*	32/3.5						92/85	118	118	200	6.5
CBHY-G32/F4.5-ATφ*	32/4.5						92/90			203	6.7
CBHY-G30/F3.5-ATφ*	30/3.5						92/85	116	116	198	6.1
CBHY-G30/F4.5-ATφ*	30/4.5						92/90			201	6.4
CBHY-G28/F3.5-ATφ*	28/3.5						92/85	114	114	196	6.1
CBHY-G28/F4.5-ATφ*	28/4.5						92/90			199	6.2
CBHY-G25/F3.5-ATφ*	25/3.5						92/85	110	110	192	5.8
CBHY-G25/F4.5-ATφ*	25/4.5						92/90			195	5.9
