Ceramic beads blasting finish B20,B30, B40, B60, B80, B100, B120, B150, B170, B205

1. DESCRIPTION

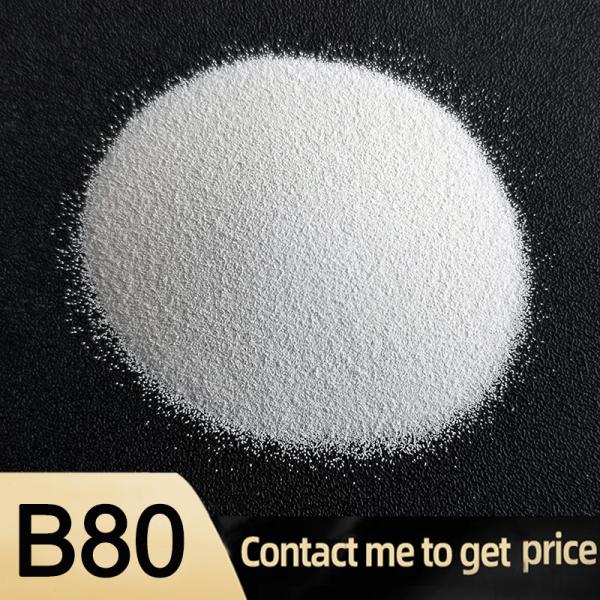

Ceramic beads is made of imported zircon sand as the main raw material, and is produced by high temperature smelting above 2000 degrees. Particularly suitable for metal blast cleaning, surface finishing and pretreatment before coating.

Ceramic beads has a fine microstructure, so it has very good impact strength and toughness, high hardness and surface smoothness, can be recycled repeatedly, and has a high utilization rate, which is 15-20 times that of glass beads.

B20-B505 has a wide range of particle sizes, strong optionality, and can be matched with various types of sandblasting machines.

2.SPECIFICATION

Manufacturing process: Melting method

3. FEATURES

• High impact resistance and round beads, not easy to be broken. The broken rate of ceramic beads is around 1%.
• Low dust generation, friendly to the environment and worker’s health.
• Matte Metallic luster, no polishing reflective.
• No metal pollution.

4. APPLICABLE BLASTING SYSTEMS

Pressure blast systems
Injection blast cabinets

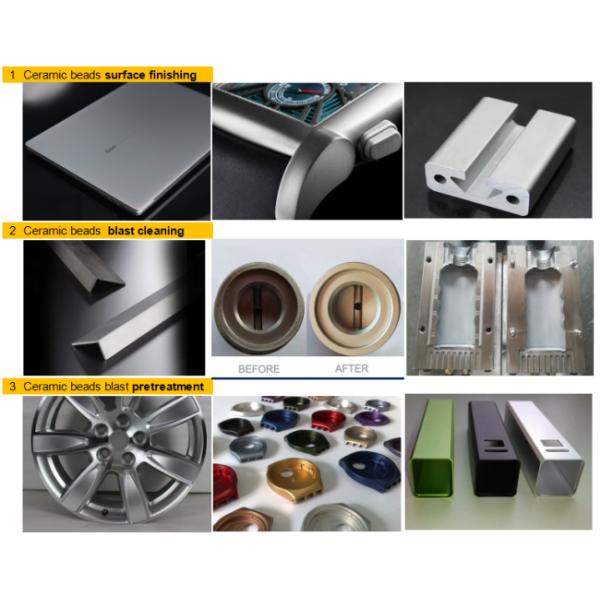

5. APPLICATION

Surface finishing:

Achieve smooth but non-reflective matte visuals effects

Blast-cleaning:

• Deburring of machined parts;

• Removing scales from castings, forgings and heat treated parts;

• Removing mould residues from castings;

• Removing tempering colour;

• Clean up welds

Pretreatment before Coating:

Achievie surface roughness to improve the bonding force

Applicable metals

• Aluminium
• Aluminium alloy
• Copper
• Steel
• Stainless steel
• Titanium Alloy
• Magnesium Alloy
• Zinc Alloy

6. PACKAGE

25 kg barrels on pallets, 500-1000kgs per pallet

Contact us to upgrade your sandblasting process.
