Automatic Ice Evaporator for Making Ice Cubes Commercial Block Ice Making Machine

Categories	Ice Machine
Place of Origin:	China
Brand Name:	JY
Packaging Details:	Export Standard Package
Supply Ability:	2000 Set/Sets per Year
Price:	$35.00/sets 1-9 sets
Ice Shape:	Ice Cube
Voltage:	220V
Dimension(LWH):	5628301560 mm
Warranty:	1 Year
Key Selling Points:	High Productivity
Ice storage capacity:	30kg, 900kg, 140kg, 350KG, 80KG, 700kg, 40kg, 400kg
Machinery Test Report:	Provided
Video outgoing-inspection:	Provided
Warranty of core components:	1 Year
Core Components:	Motor
Compressor brand:	TECUMSEH
Application:	Industrial, Industry.etc
Name:	Cube ice machine
Type:	Automatic Ice Maker
Material:	Stainless Steel
Control system:	Automatic Control System
Ice size:	29mm29mm22mm /22mm22mm22mm
Keyword:	Commercial Block Ice Making Machine
Daily capacity:	45kg/d
Feature:	High Efficiency
Power supply:	320w
Applicable Industries:	Restaurant, Hotels, Building Material Shops, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop
Condition:	New
Power:	0.8kW
Port:	shanghai

Contact Now

Add to Cart

Company Info.

Shanghai Lianfu Machinery Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Automatic Ice Evaporator for Making Ice Cubes Commercial Block Ice Making Machine

Product Description

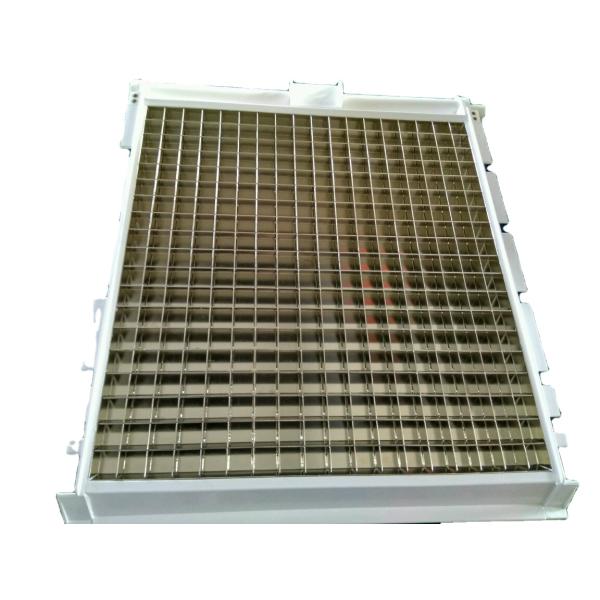

40*40*22mm ice evaporator ice machine cube mold for square ice maker machine evaporator

Grids quantity	Maximum production capacity	Evaporator size	Grids size
5*9	48kgs/day	237*259mm	222222mm
5*10	54kgs/day	237*282mm	222222mm
5*11	60kgs/day	237*305mm	222222mm
5*12	65kgs/day	237*328mm	222222mm
5*14	75kgs/day	237*374mm	222222mm
5*16	86kgs/day	237*420mm	222222mm
5*18	97kgs/day	237*466mm	222222mm
6*14	90kgs/day	260*374mm	222222mm
6*18	116kgs/day	260*466mm	222222mm
7*18	136kgs/day	282*466mm	222222mm
9*12	116kgs/day	330*330mm	222222mm
11*18	215kgs/day	376*468mm	222222mm
12*13	170kgs/day	422*537mm	222222mm
13*18	252kgs/day	422*468mm	222222mm
13*21	295kgs/day	422*537mm	222222mm
11*17	295kgs/day	422*537mm	282822mm
14*13	196kgs/day	399*353mm	222222mm
17*21	385kgs/day	514*537mm	222222mm
19*18	370kgs/day	560*468mm	222222mm
19*21	430kgs/day	560*537mm	222222mm
16*17	430kgs/day	560*537mm	282822mm
11*12	430kgs/day	560*537mm	404022mm
21*23	520kgs/day	537*604mm	222222mm
Any size can be customized, please contact!

Specification

Product features:
*Mainly used for quick cycle ice-making of household and commercial ice machine *It is made of copper by welding, with advantage of heat exchanging.

*In the back of ice board, it is using "D" tube or ellipse tube connection to enlarge the interface area of evaporator and ice
board, so it can enhance the efficiency of heat exchanging, shorten the time of ice making and ice dropping and improve the ice making capacity and ice cube quality.

*The evaporator surface is chemistry plated by nickel which accords with environmental-friendly and food safety demands. Compared with traditional electroplated,the chemistry plated by nickel is better in dense, lower in hole. The perfect combine of plating sheet and base material can protect the product surface well and improve the antiseptic capacity.

*There is 72°~85°incline between the horizontal septa and ice board, so that the ice cube can be dropped smoothly when ice dropping.

*The ice cube is nearly square and it is transparent with high density.

Working principle:
By evaporating the refrigerant in tube,the heat is transferred to ice board;by recycle water pump,the water flows into the ice
grid through spaying pipe,it can make ice in cooling conditions and ice drop in heating conditions.

Packing & Delivery

Export Standard Package

Company Profile

Shanghai Jingyao Industrial Co., Ltd. was located at Shanghai, China. Specialized in manufacturing refrigeration equipment, food machinery and accessories. We have our own R&D department and professional manufacturing base. Main products of refrigeration equipment: block ice machine, flake ice machine, tube ice machine, cube ice machine, water chiller, cold room, ice crusher and accessories.

FAQ

Q:What's my consideration when I choose this machine?
A: -The size of your bakery or facotry.
-The food you produce.
-The power supply,voltage,power and capacity.
Q:Can I be a distributor of Jingyao?
A:
Of course you can. please contact us immediately for further details by sending us an inquiry,
Q:What are the benefits of being a jingyao distributor?
A: - Special discount .
- Marketing protection.
- Priority of launching new design.
- Point to point technical supports and after sales services.
Q: How about warranty?
A:
We have one year warranty after you get the items,
if there is any quality problem come out within one year warranty,
we will send necessary parts for replacement for free, replacement instructions should be provided;
so you don't worry anything.

we will serve you well at any time.
