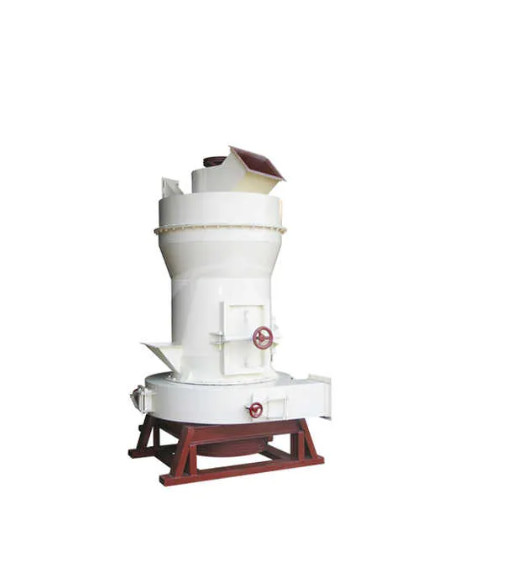

Limestone Raymond Mill Grinding Equipment With High Qualification Rate

Limestone Raymond Mill Grinding Equipment With High Qualification Rate

Main structure:

The structure of this machine mainly consists of the main unit, analyzer, fan, finished product cyclone separator, fine powder cyclone separator and air duct. Among them, the main unit is composed of a frame, an air intake volute, a scraper, grinding rollers, grinding rings and a cover shell.

Working principle:

When in operation, the materials to be crushed are added into the machine through the feeding hopper on the side of the machine cover shell. Relying on the grinding roller device suspended on the main machine's plum blossom frame, it rotates around the vertical axis while rotating itself. Due to the effect of centrifugal force during rotation, the grinding roller swings outward and tightly presses against the grinding ring, causing the scraper to lift the materials and send them between the grinding roller and the grinding ring. The purpose of crushing materials is achieved by the rolling and pressing of the grinding rollers.

Air separation process: After the materials are ground, the fan blows air into the main casing to lift the powder. The powder is then sorted by the analyzer placed above the grinding chamber. Materials that are too fine fall back into the grinding chamber for re-grinding. Those that meet the fineness specifications enter the cyclone collector with the air flow, and are collected and discharged through the powder outlet, which is the finished product. The air flow is returned to the fan through the return air pipe at the top of the large cyclone collector. The air path is circulating and flows under negative pressure. The increased air volume of the circulating air path is discharged through the exhaust gas pipe between the fan and the main unit, and then enters the small cyclone collector for purification treatment.

Product parameter:

Product display


Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

Luoyang Zhongtai Industries Co., Ltd. The company was founded in 1981 and finished joint stock reform in 2005. There are eight subsidiaries and it's an independent legal entity with the qualifications of operating import & export trade.

With a garden-like industrial park and modern standard plant covering 80,000 square meters, ZTIC possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services as a whole. The products comprise all the equipments used in mining, cement, metallurgy, construction as well as the related accessories with high power reducer and large-sized castings & forgings, etc.

ZTIC has acquired ISO 9001:2008 Certification of conformity of Management System Certification, Mine Product Safety Authentication, Recognition for BV Mode Ⅱ Survey Scheme in France, Mining Electrical Equipment KY Certification, etc.
The company has also acquired "Fully Quality Management Achievement Award", "Top 50 Enterprises", "Henan Outstanding Innovative Enterprise” and “The Most Powerful Enterprises of Henan" in 2010.

Quality product performance and good reputation, our products have been exported to mnay countries and regions in the world, including: Russia, Serbia, Australia, Mongolia, Indonesia, Bangladesh and other countries, the products are subject to a great welcome and praise.
