| Categories | Slip Ring With Flange |
|---|---|
| Brand Name: | GUREN |
| Model Number: | Wx12-18PS |
| Certification: | ISO9001.CE.RoHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | ＄19-199 |
| Payment Terms: | L/C,D/A,T/T |
| Supply Ability: | 1K units/week |
| Delivery Time: | 3 weeks ARO |
| Packaging Details: | Standard/On Request |
| Voltage Rating: | 240VAC/DC |
| Current Rating: | 2A |
| Ip Rating: | IP51 |
| Storage Temperature: | -20°C to 80°C |
| Certifications: | CE, RoHS |
| Contact Material: | Gold-Gold |
| Company Info. |
| Shenzhen Guren Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

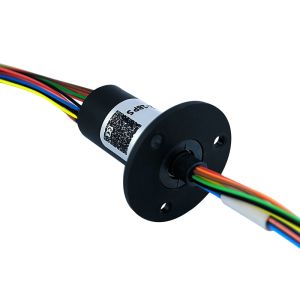

WX12-18PS cap-type slip ring has a small diameter, supports 360° infinite rotation, provides 18 signal/power channels, and uses UL certified AWG28# Teflon wire with flame retardant grade V0. It is widely used in low-power devices such as drone gimbals and rotating display screens.
Flange slip ring product features:
1. Omnidirectional transmission capability: supports mixed
transmission of current, video/image, control instructions,
Ethernet, servo motor signals, etc., and realizes 360° rotation
transmission of multiple types of signals and power synchronously.
2. Military-grade contact points: adopts ultra-hard gold plating
technology to ensure minimal contact resistance fluctuation and
greatly extend the working life.
3. Excellent performance: has low torque, low loss, and low
electrical noise characteristics.
4. Compact size: The outer diameter is only 12.4mm, saving
installation space.
5. Integrated design: integrated structure, supporting fast and
convenient installation.
Performance parameters
Parameter name | Parameter Value |
Dielectric strength | 300VCA@50Hz,60s |
Insulation resistance | ≥500MΩ/300VDC |
Dynamic resistance change value | ＜10mΩ |
Rated voltage | 0～240VDC/VAC |
Wire Specifications | 28AWG Teflon wire (except WX-3P02) |
Wire length | Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications) |
Operating temperature | -20℃～+80℃ |
Operating humidity | 0～85%RH |
Protection level | IP51 |
Shell material | Engineering Plastics |
Rotational torque | 0.05N.m,+0.01N.m/6-way |
Service life | 2 million rpm |
Product Dimensions
Product Dimensions
Flange slip ring application
WX12-18PS cap-type slip ring is mainly used in UAV, stabilizer, smart home, security monitoring, photography, robot, test instrument, turntable and low-power automation equipment.
|
