Name: Precision Programmable Reference Integrated Circuit IC
Brand: UCHI
Price: 1 USD

Product Details
Company Profile

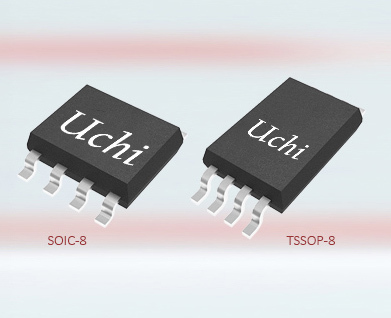

Precision Programmable Reference Integrated Circuit IC

The SGM431x is a precision programmable shuntvoltage reference that can be used in manyapplications. It is a three-terminal adjustable-outputdevice that can keep stable under all capacitive loads.It requires two external resistors in application to set theoutput voltage is to any value between VREF and 36V.All versions have a maximum operating current of100mA.The SGM431x features low dynamic impedance, lownoise, and low temperature coefficient to ensure astable output voltage over a wide range of operatingtemperatures and currents. These high performancesmake it very suitable for multiple applications, such asprecision audio components and flyback switchingpower supplies.The SGM431 is available in Green SOIC-8, SOT-23,SOT-89-3, SOT-23-5 and SC70-6 packages. TheSGM431B is available in Green SOIC-8, SOT-23,SOT-89-3 and SOT-23-5 packages

Key Features

● Adjustable Output Voltage: VREF to 36V
● Sink-Current Capability: 1mA to 100mA
● Reference Voltage Tolerance at +25℃:
 SGM431: 1% (Standard Grade)
 SGM431B: 0.5% (B Grade)
● Output Impedance: 0.1Ω (TYP)
● Temperature Drift: 5mV (TYP)
● High Stability under Capacitive Load
● Low Output Noise
● -40℃ to +125℃ Operating Temperature Range
● SGM431 is available in Green SOIC-8, SOT-23,SOT-89-3, SOT-23-5 and SC70-6 Packages
● SGM431B is available in Green SOIC-8, SOT-23,SOT-89-3 and SOT-23-5 Packages

Applications

Portable, Battery-Powered Equipment
Voltage Monitoring
Flyback Switching Power Supplies
Instrumentation
Product Testing
Precision Audio Components

Typical Application

Pin Configurations

Product Selection Guide

Part Number	Vo (V)	Reference Voltage	Initial Accuracy Max (%)	VO Ad Min (V)	VO Adj Max (V)	IZ for Regulation Min (μA)	Temperature Coefficient Max (ppm/℃)	Operating Temperature Range (℃)	IOUT/IKA Max (mA)	Package	Features
SGM431	2.5	Adj	0.5,1	2.5	36	400	60	-40 to +125	100	SOIC-8,SOT-23,SOT-89-3,SOT-23-5,SC70-6	Adjustable Precision Shunt Regulator
SGM431VB	1.24	Adj	0.5	1.24	18	65		-40 to +125	70	SOT-23	Adjustable Precision Shunt Regulator
SGM432	2.5	Adj	0.5,1	2.5	36	400	60	-40 to +125	100	SOT-89-3,SOT-23,SOT-23-5	Adjustable Precision Shunt Regulator
SGM4025	1.25,2.048	Fixed	0.1			230†	30	-40 to +125	10	UTQFN-1.5×1.5-8L	30ppm/℃, 230μA, CMOS Voltage Reference
SGM4027	2.048,2.5	Fixed	0.1			245†	35	-40 to +125	10	SOT-23	35ppm/℃, 245μA, CMOS Voltage Reference
SGM4029	2.5,3.0,4.096	Fixed	0.1			1450†	10	-40 to +125	10	SOIC-8	Low Noise, Low Drift, Precision Voltage Reference
SGM4040B	2.5	Fixed	0.2			48	20†	-40 to +125	15†	SOT-23	Micro-Power, Precision Shunt Voltage Reference
SGM4051C	1.2,Adj	Fixed,Adj	0.5	1.206	10	45	20†	-40 to +125	12†	SC70-5,SOT-23	Micro-Power, Precision Shunt Voltage Reference

Note: † Typical Values @ 25℃
