| Categories | UAV Video Transmitter |
|---|---|
| Brand Name: | Hincn |
| Model Number: | HCT531 |
| Place of Origin: | China |
| MOQ: | 1 pc |
| Price: | US$1,955~US$2,318 |
| Payment Terms: | ,T/T,Western Union,MoneyGram,D/P,D/A,L/C |
| Supply Ability: | 899 sets/ month |
| Delivery Time: | 7~14 working days |
| Packaging Details: | carton package |
| Wireless modulation: | COFDM |
| Transmission power: | 10W(40dBm) or 20W(43dBm) |
| Frequency: | 160MHz~860MHz without downconverter |
| Encryption: | AES256 |
| Video input: | AV/ HDMI |
| OEM/ ODM: | Support |
| Company Info. |
| Hincn Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

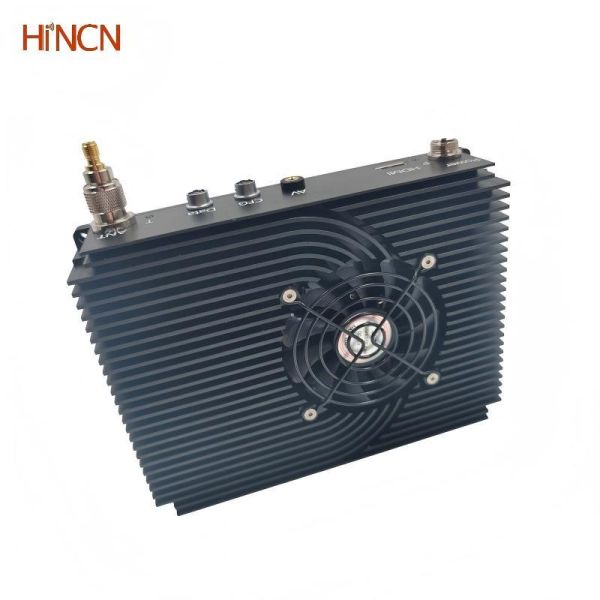

| Product name | High Power COFDM UAV Transmitter Support AV HDMI Video Input AES256 Encrypted |
| Model Number | HCT531 |
| Modulation | |
| Wireless modulation | COFDM( DVB-T) |
| Carriers | 2K |
| Bandwidth | Configurable from 1MHz to 8MHz, step by 1KHz |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Constellation | QPSK, 16QAM, 64QAM |
| Bitrates | 0.5Mbps to 31.67Mbps |
| RF | |
| Transmission power | 10W(40dBm) or 20W(43dBm) |
| Frequency | 200MHz~860MHz |
| Tuning Step size | 1KHz |
| Video and Audio | |
| Video input | HDMI or CVBS, auto-detected after system start-up Optional: two channel video input/encoding/transmit at the same time |
| Video formats | 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@ 50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC), 720*576 50I(PAL) |
| Video Coding | H.264/ H.265 |
| Audio input | Embedded HDMI or analog audio |
| Audio Coding | AAC, 16bit, stereo, 32Kbps |
| Encryption | AES256 |
| Others | |
| Control method | Through our configuration panel, PC or other devices via Control UART, comprehensive transmitter settings can be achieved. |
| Storage Temperature range | –40° to +80°C |
| Size | 180*136*38mm |
| Weight | 906g |
| Input voltage | 28V |
The HCT531 COFDM UAV transmitter is designed for use with HD or SD cameras, offering superior miniature wireless video transmission for Point of View Cameras, UAV/UGV/Body Cams/Concealments, and sports cameras. Featuring HDMI or AV inputs with COFDM modulation technology and H.264/H.265 encoding, it delivers complete video and audio transmission in high-speed motion and NLOS (non-line of sight) conditions with low latency.
The HCT531 COFDM UAV transmitter provides up to 10W or 20W of power in a compact metal case weighing less than 910 grams, ensuring long-range, reliable HD video transmission.
| Input/Output Interface | |
|---|---|
| HD Video Input | HDMI Type-A connector |
| Composite Video Input | 3.5mm earphone connector |
| UART Data | YC8-3 connector, TTL3.3V by default (optional RS232) |
| TTL UART Control | YC8-4 connector, TTL 3.3V |
| Power in | GX12-2 connector |
| RF output | TNC female |
A: The transmitter frequency can be 160MHz~2700MHz, but our COFDM wireless receiver only supports 170~860MHz. For 1.2G or 1.4G, a frequency down converter is required at the receiver end.
A: Yes, our COFDM wireless video transmitters support HDMI, SDI, CVBS AV, IP Ethernet RJ45 and AHD video input.
A: For UAV applications, the transmission range is about 100km when the UAV is at approximately 500 meters altitude with receiver antennas positioned as high as possible.
|
