10A-2 Pneumatic Air Cylinder ISO Bore Φ125, Φ160, Φ200, Φ250 Heavy Big Cylinder

I. Features

1. Installation dimensions comply with ISO (International Standard).
2. Oil-free (oil-lubricated optional) lubrication avoids oil-gas contamination, and the oil mist lubricator can be omitted.
3. Main parts are made of high-quality carbon steel, sturdy and durable, suitable for working under harsh conditions.

II. Graphical Symbols and Appearance

III. Model

IV. Main Technical Parameters

1. Cylinder Bore: Φ125, Φ160, Φ200, Φ250 (mm)
2. Cushion Stroke: 20, 23, 23, 25 (mm)
3. Maximum Stroke: 2000mm
4. Working Pressure Range: 1~10bar
5. Proof Pressure: 15bar
6. Operating Speed Range: 50~700mm/s
7. Operating Temperature Range: -25 ~ +80℃ (under non-freezing conditions)
8. Working Medium: Purified Compressed Air
9. Lubrication: Not Required (Oil-Lubricated Optional)

V. Outline and Installation Dimensions

1. Basic Type (SD Type) ISO

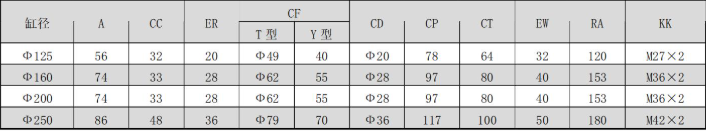

VI. Outline and Dimensions of Rod End Accessories

• T Type (Single Lug Connecting Rod)
•
• Y Type (Fork - Shaped Connecting Rod with Pin)
•
•
