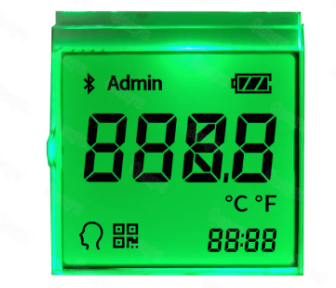

Transflective Custom Segment LCD Display with RGB Color LED Backlight

This custom segmented LCD display combines transflective technology with RGB color backlighting, offering low power consumption, high contrast, and adjustable color capabilities. Ideal for applications requiring fixed display content (numbers, icons, simple characters) with flexible color expression.

• Combines segmented LCD's low power consumption with RGB backlight's color flexibility
• Customizable segment layout for numbers, icons, and simple characters
• High contrast transflective display visible in various lighting conditions
• RGB LED backlight with 16.7 million color options
• Optimized for instrument panels, smart home controls, and vehicle displays

Custom Segmented LCD Panel: Designed with specific segments (numbers, symbols, icons) using TN mode liquid crystal for high contrast and backlight transmission.

RGB Backlight Module: Utilizes RGB LEDs with PWM control for color mixing, paired with light guide plates for uniform illumination.

Driver Circuit: Includes segmented LCD driver chips and RGB backlight control via MCU programming.

• Transparency optimization with high-transmittance polarizing films
• Color consistency through software calibration
• Low power consumption design with dynamic backlight control
• Support for dynamic effects like color switching and gradient transitions

• Instrumentation (multimeters, thermometers)
• Smart home control panels
• Vehicle dashboard displays
• Consumer electronics status indicators

1. Determine display requirements and customize LCD panel
2. Design RGB backlight module to match LCD segments
3. Build driver circuits and write control programs
4. Optimize light transmission and color effects
