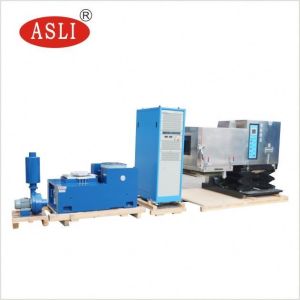

Temperature Humidity Vibration Machine With JIS D1601 Standard
This advanced testing system combines temperature, humidity, and
vibration capabilities in a single unit, designed for comprehensive
environmental stress screening of products and materials.
Key Features
- Mobile orbit design for easy operation of combined tests
- Integrated safety devices for secure operation
- RS-232 & RS-485 communication interfaces
- CE certified for quality assurance
- Intuitive touch screen controller
Machine Introduction
The Temperature Humidity Vibration Machine provides controlled
environmental conditions for scientific research and industrial
applications in aerospace, aviation, petroleum, chemical,
electronics, and communication sectors. It enables comprehensive
stress screening tests combining temperature, humidity, and
vibration factors to evaluate product performance and reliability
under simulated real-world conditions.
Technical Specifications
Temperature and humidity range: C: -20~150°C; 20%~98% | D: -40~150°C; 20%~98% | F: -70~150°C;
20%~98%
Stability: Temperature: ±0.5°C | Humidity: ±2.5% RH
Uniformity: Temperature: ≤±2°C | Humidity: ±3%RH
Test machine size: Customizable dimensions available
Standard Models
| Model | THV-512(A~F) | THV-1000(A~F) | THV-1500(A~F) |
|---|
| Internal Dimension W×H×D (mm) | 800×800×800 | 1000×1000×1000 | 1500×1500×1500 |
| External Dimension W×H×D (mm) | 1050×1950×2100 | 1300×2200×2400 | 1800×2400×3000 |
| Temperature Range | Low temperature: (A:25°C; B:0°C; C:-20°C; D:-40°C; E:-60°C;
F:-70°C) High temperature: 100°C (150°C) |
| Humidity Range | 20%~98% R.H. (10%-98% R.H./5%-98% R.H. optional with dehumidifier) |
| Control Accuracy | ±0.5°C; ±2.5% R.H. |
| Temperature Change Rate | Rising: 0.1~3.0°C/min | Falling: 0.3~1.0°C/min (Optional:
Min.1.5°C/min) |
| Protection Devices | Fuse-free switch, compressor protection, coolant protection,
over-humidity/temperature protection, fault warning system, water
storage protection |
Advanced Features
- Combined test chamber and refrigerating system with compact,
elegant design
- Independent console for flexible operation
- International brand refrigeration compressor and components
- LCD color touch screen controller with programmable
temperature/humidity control
- RS-232 communication interface
- Customizable vibration test bench options
- Optimized heat and air seal system with effective mechanical
vibration
Vibration Test Machine Specifications
| Model | ES-3 | ES-3a | ES-6 | ES-6a | ES-10 | ES-20 | ES-30 | ES-40 | ES-50 |
|---|
| Rated Sine Force (N) | 3000 | 3000 | 6000 | 6000 | 10000 | 20000 | 30000 | 40000 | 50000 |
| Rated Random Force (N) | 3000 | 3000 | 6000 | 6000 | 10000 | 20000 | 30000 | 40000 | 50000 |
| Frequency Range (Hz) | 3-3500 | 3-3500 | 3-3500 | 3-3500 | 3-3000 | 3-3000 | 3-2800 | 3-2800 | 3-2700 |
| Rated Acceleration (m/s²) | 1.6 | 1.6 | 1.6 | 1.6 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Max. Loading (Kg) | 3.5 | 9 | 6.5 | 12 | 14 | 30 | 40 | 50 | 50 |
Product Images
Company Information
With 28 years of experience in testing equipment manufacturing, we
specialize in environmental simulation and mechanical vibration
testing systems. Our Temperature Humidity Vibration Machine with
JIS D1601 Standard is a flagship product, certified to CE standards
for quality and safety.
Packing & Delivery
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, with 10mm foam between machine and case, enclosed
in standard export plywood case.
Q2. What is your terms of payment?
A: 50% T/T deposit, with 50% balance before delivery. We provide
product and packaging photos before final payment.
Q3. What is your terms of delivery?
A: Available options include EXW, FOB, and CIF.
Q4. How about your delivery time?
A: Typically 30-60 days after receiving advance payment, depending
on order specifics.
Q5. Can you produce according to the samples?
A: Yes, we can manufacture based on your samples or technical
drawings, including custom fixtures.
For more information about our Temperature Humidity Vibration
Machine With JIS D1601 Standard, please contact us for detailed
specifications and quotations.
