Brand Name: ASLI
Place of Origin: Guangdong, China
Model Number: RT-1000-A
MOQ: 1
Power Supply: AC220V
IP Rate: IPX1 X2 X3 X4 X5 X6 X9
Inner Material: SUS304 stainless steel
Inner Material Thickness: 1.0mm±0.05
Outer Material: Galvanized steel plate
Internal Dimensions: 1000x1000x1000 mm
External Dimensions: 1600x1900x1400 mm
JIS Test Flow: 1.8L/Min~3.9L/Min
JIS Test Pressure: 0.1kgf/cm2~0.3 kgf/cm2
Drop Test Speed: 1~1.5mm/Min Adjustable
Rain Swing Test: RT~±80°C
Rain Swing Flow: 0.07L/min per Nozzle
Water Spray Flow: 12.5L/min ~100L/Min
High Pressure Jet: 80Kgf~100Kgf
Rotating Speed: 4~20 RPM adjustable
Contact Now
Company Info.
ASLi (China) Test Equipment Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

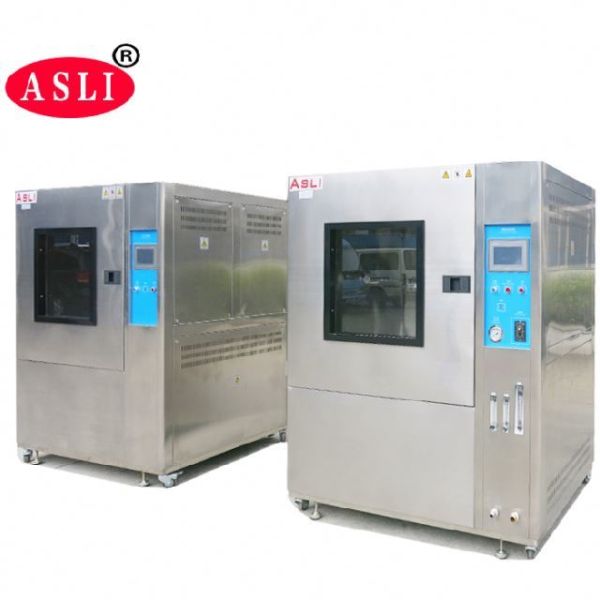

Spray Rating Testing Equipment Textile Lab Equipment

Spray Rating Testing Equipment Textile Lab Equipment
Our spray rating testing equipment is designed for precise evaluation of materials' resistance to water penetration in laboratory conditions.
Key Characteristics
  • Double-casing construction with SUS304 stainless steel inner wall (1.0mm±0.05 thickness) and galvanized steel outer casing
  • Sloped bottom design prevents water accumulation and includes filtration system
  • Large viewing window with interior lighting for clear observation
  • Water circulation system for efficient operation and cost savings
  • Available in standard and custom configurations for various sample sizes
Applications
Ideal for testing plastics, rubber, paints, coatings, textiles, auto parts, packaging materials, building materials, and electrical components. Provides critical data for research, product development, and quality control.
Rain Spray Test Chamber for textile lab testing
Technical Specifications
ModelRT-1000A
Test StandardsJIS, ISO, IEC60529, DIN40050, GB2423, GB4208
Internal Dimensions (W×H×D)1000×1000×1000 mm
External Dimensions (W×H×D)1600×1900×1400 mm
JIS Test ParametersFlow: 1.8-3.9 L/min
Pressure: 0.1-0.3 kgf/cm²
Drop Test1-1.5 mm/min adjustable
IPx1/IPx2 compliant
Rain/Swing Pipe TestRT~±80°C swing
0.07 L/min per nozzle
IPx3/IPx4 compliant
Water Spray Test2.5-3m jet
12.5-100 L/min flow
High Pressure Jet Test80-100 kgf pressure
14-16 L/min flow
IPx9K compliant
Rotating Plate Speed4-20 RPM adjustable
Detailed Features
Detailed view of spray rating testing equipment
Close-up of test chamber interior

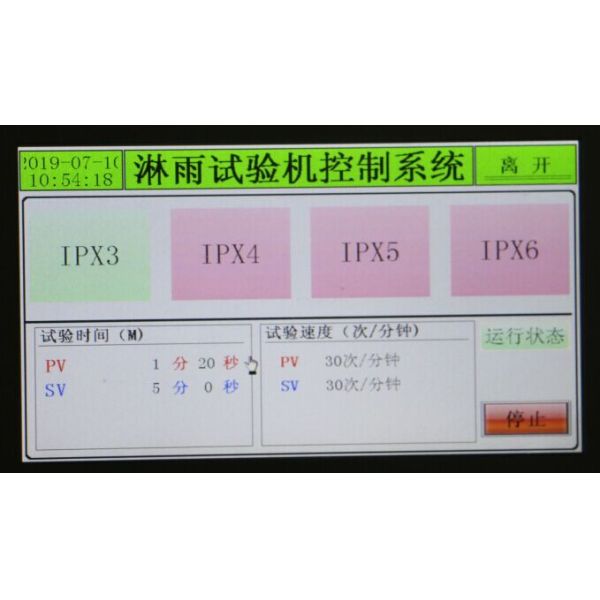

Equipment control panel

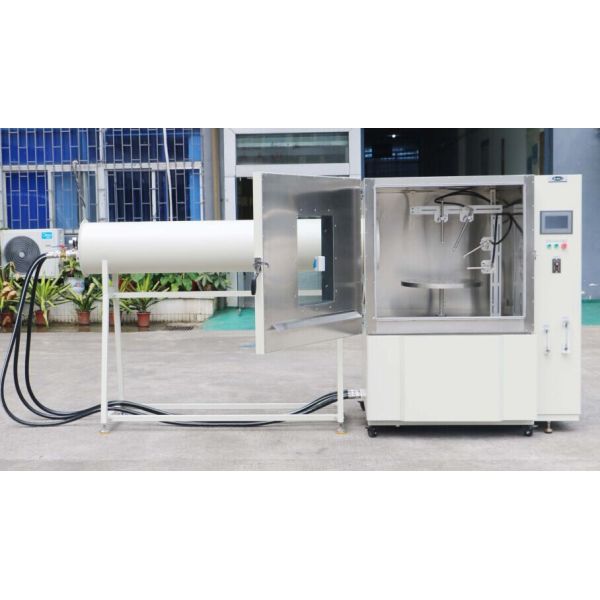

Water spray test demonstration
Equipment operation view
Temperature Humidity Chamber
Temperature Humidity Chamber

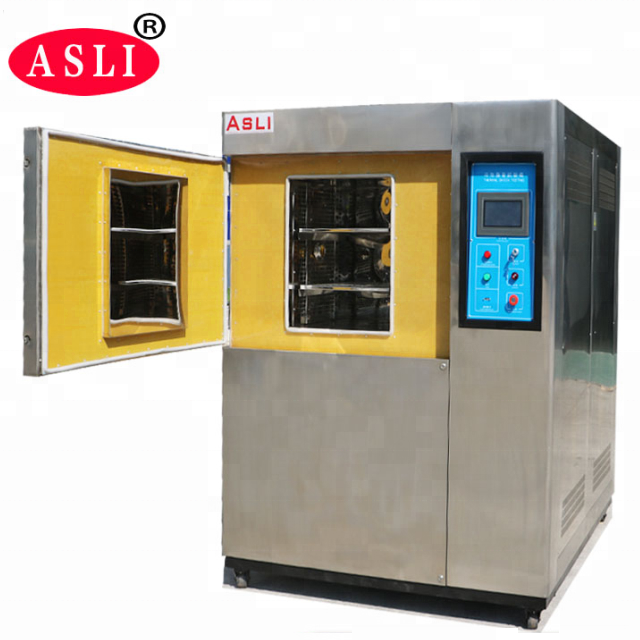

Thermal Shock Machine
Thermal Shock Machine

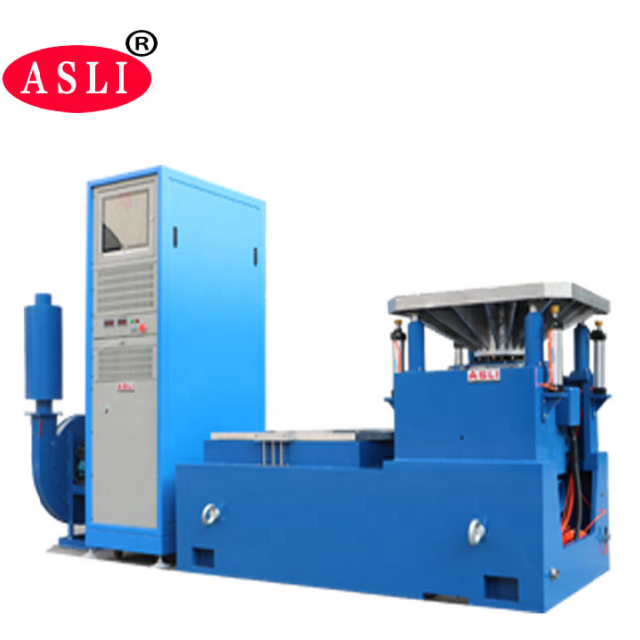

High Frequency Vibration Shaker
High Frequency Vibration Shaker
For any questions about our spray rating testing equipment or to request a quotation, please contact our technical team.
