| Categories | Ethernet Slip Ring |
|---|---|
| Brand Name: | Panlink |
| Model Number: | PSR-C36-6P2S1E-HDMI |
| Certification: | ISO 9001: 2015, CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Packaging Details: | Carton Box, EPE Foam, Wooden Box(For Large Goods) |
| Name: | Ethernet Slip Ring |
| Video Connections: | 19-pin HDMI 1080P@60Hz |
| Ethernet Connections: | 100BaseT Ethernet |

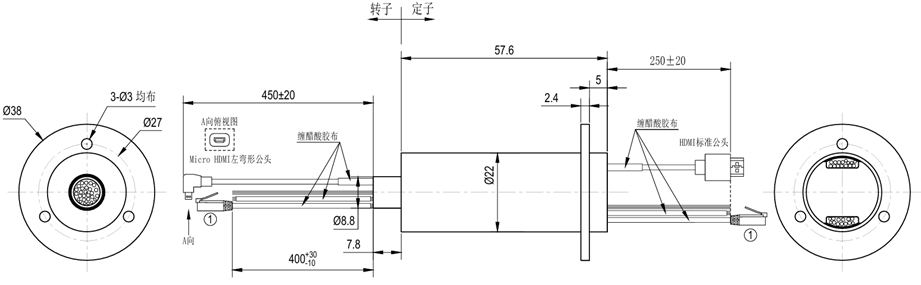

| D x L: | 0.87″ x 2.27″(22mm x 57.6mm) |
| Housing Material: | Aluminum Alloy |
| Price: | Negotiable |
| Delivery Time: | 4 Weeks |
| Supply Ability: | 40 Million a Year |
| Company Info. |
| Shenzhen Panlink Electronic Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Stable Slip Ring with 19-pin HDMI and Ethernet Integration,
Designed for Equipment that Requires Rotating Transmission of
High-Definition Video
1 Group HDMI+ 1 Group 100M Ethernet
| Features | Applications |
• Video Connections:19-pin HDMI 1080P@60Hz | • Security Surveillance |
• Ethernet Connections: 100BaseT Ethernet | • Display and Broadcasting Equipment |
• D x L: 0.87″ x 2.27″(22mm x 57.6mm) | • Medical Equipment |
• Housing Material: Aluminum Alloy | • Radar and Sensing Equipment |
 | The cable is supplied terminated with a HDMI connector. |
| Model | 100BaseT Ethernet | HDMI | OD x L inch(mm) | Circuits | Voltage |
| PSR-C36-2P21E-HDMI | 1 | 1 | 0.87″ x 2.27″(22 x 57.6) | 33 | 240VDC |
| Specifications | |
| Insulation Resistance | 50MΩ@100VDC |
| Electrical Noise | Max. 10mΩ |
| Dielectric Strength | 100VAC@50Hz |
| Speed | 100rpm |
| Lifetime | 10 million revolutions |
| Working Temperature | -40℉ to +176℉(-40℃ to +80℃) |
| Protection Level | IP51 |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Lead Wire | Teflon Wire |
|
