| Categories | Ethernet Slip Ring |
|---|---|
| Brand Name: | Panlink |
| Model Number: | PSR-C36-32S1E |
| Certification: | ISO 9001: 2015, CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Packaging Details: | Carton Box, EPE Foam, Wooden Box(For Large Goods) |
| Name: | Ethernet Slip Ring |
| Ethernet Connections: | 100BaseT Ethernet |
| Contact Material: | Gold-gold |
| Housing Material: | Aluminium Alloy |

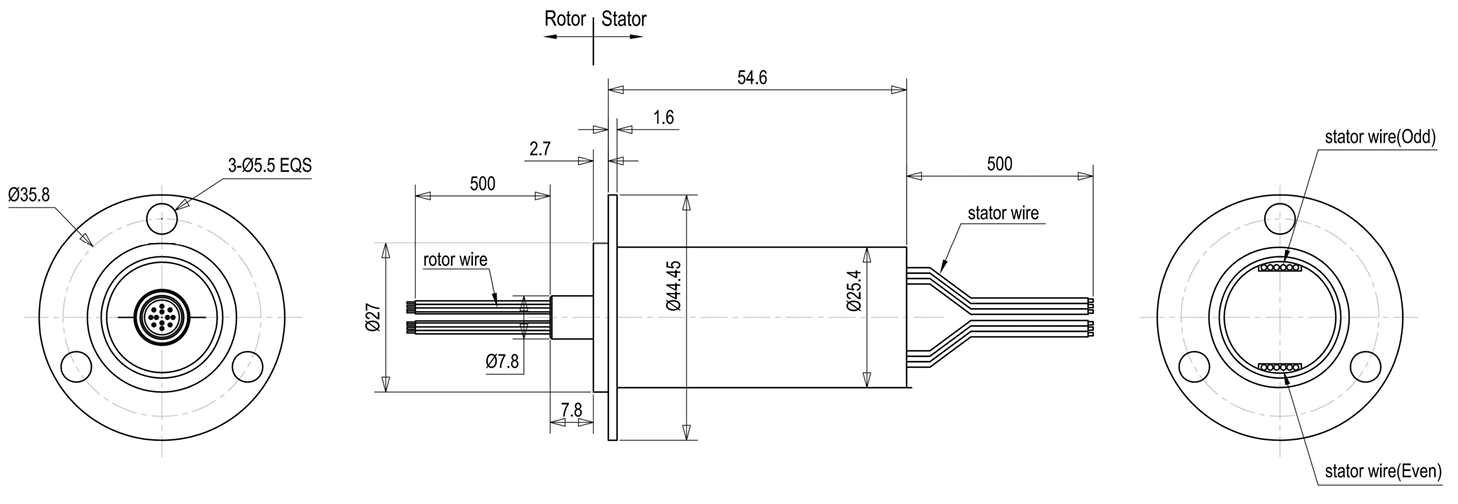

| D x L(mm): | 44.45 x 54.6 |
| Price: | Negotiable |
| Delivery Time: | 4 Weeks |
| Supply Ability: | 40 Million a Year |
| Company Info. |
| Shenzhen Panlink Electronic Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

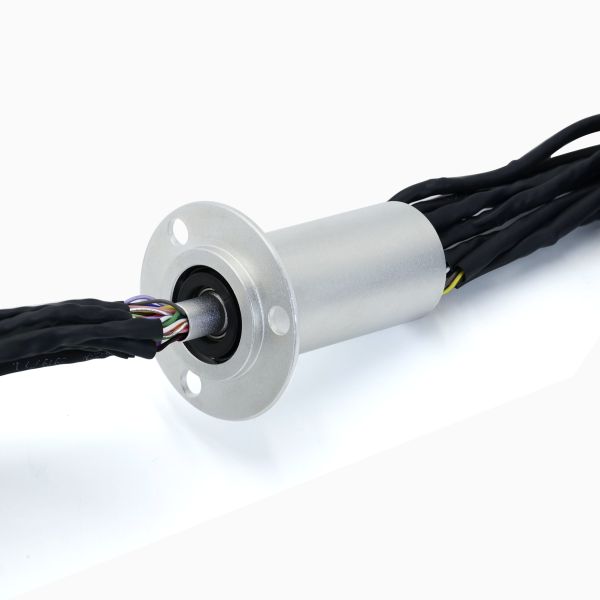

1 Channel 100M Ethernet + 32 Channel Signal/Power Hybrid Slip Ring Suitable for Complex Electromechanical Integrated Equipment
| Feature | Appliccation |
| • Ethernet Connections: 100 BaseT Ethernet | • Automation equipment & robotics |
| • Contact Material: Gold-Gold | • Test & measurement equipment |
| • Housing Material: Aluminium Alloy | • Security & surveillance |
| • D x L(mm): 44.45 x 54.6 | • Medical equipment |

| Specification | |
| Total Rings | 36 |
| Circuit | 32 x Signal(2A); 1 x 100BaseT Ethernet |
| Voltage | 100VDC |
| Insulation Resistance | 50MΩ@500VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 60rpm |
| Torque | ≤0.2N.m |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -33℃~+75℃ |
| Storage Temperature | -40℃~+80℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP54 |
| Lead Wire | AWG#26 Teflon Wire |
|
