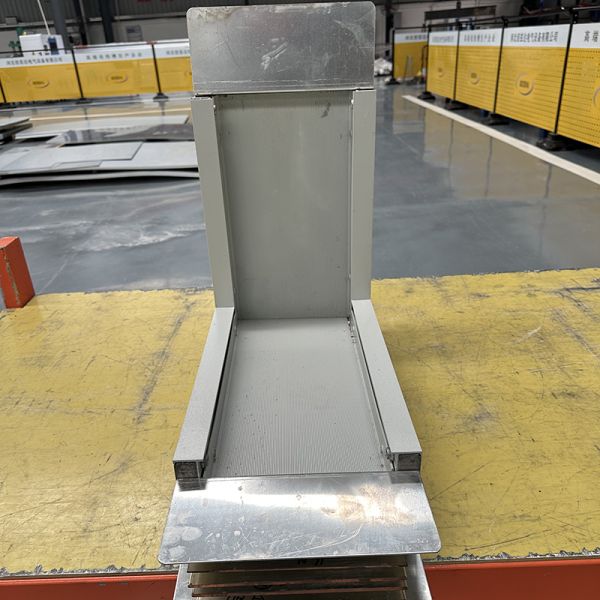

Custom 1600A Dense Busbar Fireproof Insulated Low Voltage Closed Type Three-Phase Four-Five Wire Copper Plug-In Cable Busway

Custom 1600A Dense Busbar Fireproof Insulated Low Voltage Closed Type Three-Phase Four-Five Wire Copper Plug-In Cable Busway

Custom 1600A Dense Busbar Fireproof Insulated Low Voltage Closed Type Three-Phase Four-Five Wire Copper Plug-In Cable Busway
Custom 1600A Dense Busbar Fireproof Insulated Low Voltage Closed Type Three-Phase Four-Five Wire Copper Plug-In Cable Busway
Categories Busway System
Certification: ISO9001
Place of Origin: Langfang, Hebei, China
Rated Current: 200 - 6300 A
Material: Aluminum, copper
Application: Outdoor, Industrial, Electric Power Transmission
Surface treatment: Housing aluminum alloy/conductor TMY copper
Conductor material: Copper or aluminum
Frequency: 50-60Hz
Degree of protection: IP54/IP66
Rated Voltage: 690 V, 1000V
Working Temperature: -40℃~+80℃
Type: Power Busways
Rated frequency: 50Hz--60Hz
Brand Name: BZIDA
MOQ: 50 meters
Packaging Details: Export standard compliant
Delivery Time: 30 days
Payment Terms: 30% prepayment, full payment upon delivery
Supply Ability: 3000 meters per month
Contact Now
Company Info.
Hebei Baizida Electrical Equipment Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Custom 1600A Dense Busbar Fireproof Insulated Low Voltage Closed Type Three-Phase Four-Five Wire Copper Plug-In Cable Busway

Custom 1600A Dense Busbar Fireproof Insulated Low Voltage Closed Type Three-Phase Four-Five Wire Copper Plug-In Cable Busway

Product Description:

Power plants and substations: As important components of electrical equipment and power transmission systems, they are used for wire connections. Its excellent electrical performance and mechanical strength ensure the stability and safety of power transmission. In power plants, enclosed bus ducts can withstand 3750V power frequency withstand voltage without breakdown or flashover for 1 minute.

Factories and mines: These places usually have a large number of large mechanical equipment and production lines, with high demand for electricity and high requirements for power supply stability. The enclosed busbar trunking has the characteristics of large capacity and high current carrying capacity (single trunking can reach 6300A), which can meet the electricity demand of these places. In smart factory environments such as electronic factories, the combination of enclosed bus ducts and intelligent technology can achieve real-time monitoring and optimization of power transmission.

Features:

1. Bus ducts use copper or aluminum as conductors, which have extremely high conductivity and can efficiently transmit large currents, meeting the needs of large-scale power transmission.

2. The bus duct is protected by a metal shell, which has good mechanical strength and electromagnetic shielding performance. At the same time, the internal conductors are wrapped with high-quality insulation materials, effectively preventing safety hazards such as short circuits and leakage.

3. The bus duct adopts modular design, which is easy to install, disassemble and expand. Its connection method is flexible and versatile, and can be customized and adjusted according to actual needs.

4. The bus duct has a compact structure and small volume, which can provide higher transmission capacity in limited space. Greatly saving installation space and reducing the cost of electrical engineering.

5. The maintenance of bus ducts is relatively simple and convenient. The connection part adopts bolt fastening or plug-in design, which is easy to disassemble and replace.

Technical Parameters:

Implementation Standard
IEC/EN 60 439-6, GB7251.1
System
Three-phase three-wire, Three-phase four-wire, Three-phase five-wire (with separate PE busbar), Three-phase five-wire (with casing
as PE)
Ambient Temperature
-25/+40/+35 (Outdoor Type -40/+40/+35)
Altitude
≤2000m
Relative Humidity
No more than 50% at a maximum temperature of 40℃,
and no more than 90% at 20℃.
Ingress Protection (IP) Rating
IP54, IP66, IP68
Rated Insulation Voltage (Ui)
AC/ DC 1000V/800V
Rated Operating Voltage (Ue)
AC1000V/690V
Rated Frequency
50/60Hz
Enclosure Material/Surface Treatment
Aluminum Alloy / Powder Coating
Conductor Material
Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum
Voltage Category / Pollution Degree
III/3
Horizontal Mounting Spacing
≤ 2m

Detailed Parameters
Current
(A)
Short-time Withstand Current
KA
Peak Withstand Current
KA
Alternating Current Resistance
(Ω)/m
Inductive Reactance/m
(Ω)/m
Impedance/m
(Ω)/m
400
30
63
0.151
0.042
0.157
630
0.105
0.035
0.111
800
0.080
0.031
0.086
1000
50
105
0.061
0.027
0.067
1250
0.044
0.022
0.050
1600
65
143
0.033
0.018
0.037
2000
0.025
0.014
0.028
2500
0.018
0.009
0.020
3150
80
176
0.016
0.007
0.017
4000
100
220
0.012
0.003
0.013
5000
0.009
0.002
0.009
6300
120
264
0.007
0.001
0.007

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
