Industrial Heat Treatment Muffle Furnace 1200 C For Steel Molding

Categories Vacuum Muffle Furnace
Model Number: htf2550-07
Place of Origin: China
Brand Name: Chitherm
MOQ: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: 50 Sets/Year
Range of Applications: Industrial
Type: Electric Holding Furnace
Usage: Steel Molding
Fuel: Electric
Atmosphere: Vacuum
Effective Dimensions: Ø250*500mm
Max Vacuum Level: 5×10-4PA
Transport Package: Wooden Packaging
Specification: 1200mm*1700mm*2200mm(W*H*D)
Trademark: Chitherm
Origin: China
HS Code: 8514101000
Customization: Available
Certification: ISO
Place Style: Horizontal
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial Heat Treatment Muffle Furnace 1200 C For Steel Molding

Industrial Heat Treatment Muffle Furnace 1200 C For Steel Molding
Product Specifications
Range of ApplicationsIndustrial
TypeElectric Holding Furnace
UsageSteel Molding
FuelElectric
AtmosphereVacuum
Effective DimensionsØ250*500mm
Max Vacuum Level5×10-4PA
Transport PackageWooden Packaging
Specification1200mm*1700mm*2200mm(W*H*D)
TrademarkChitherm
OriginChina
HS Code8514101000
Supply Ability50 Sets/Year
CustomizationAvailable
CertificationISO
Place StyleHorizontal
Product Description

The HTF2550-07 Heat Treatment Furnace is designed for steel molding applications with dimensions of 1200×1700×2200mm (W×H×D) and effective working dimensions of Ø250×500mm.

Typical Applications

Sintering and annealing process of electronic components, semiconductor wafers, and related materials in vacuum environments.

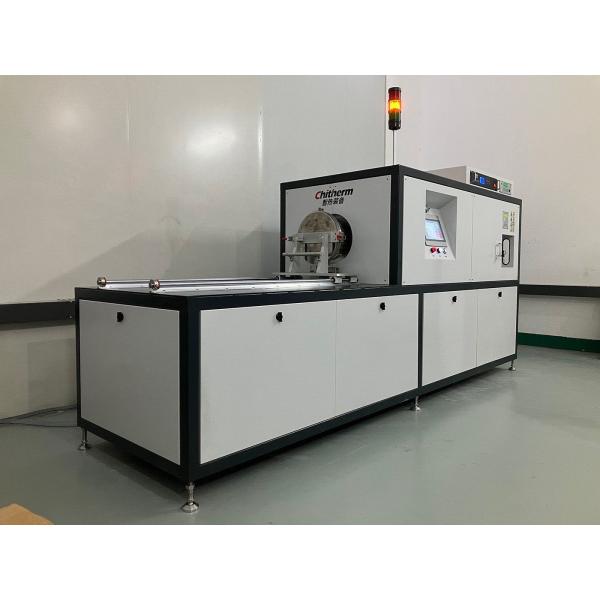

HTF2550-07 Heat Treatment Furnace showing full unit with control panel
Technical Parameters
  • Rated Temperature: 500ºC
  • Maximum Temperature: 700ºC
  • Tube Material: Fused Silica
  • Temperature Uniformity: ±2ºC
  • Temperature Zones: 3 Zones (300+300+300mm)
  • Heat Power: 24kW
  • Insulation Power: ≤8kW
  • Heating Speed: ≤15ºC/min
  • Thermocouple: Type K
  • Process Steps: 9 Steps
  • Working Vacuum Level: 1×10-3Pa
  • Vacuum Speed: ≤60min (up to 5×10-4Pa)
  • Safety Alarms: Over temperature, vacuum level, gas pressure, motor overload, etc.
Close-up view of HTF2550-07 furnace interior and components
Delivery Checklist
NameMain ContentsQuantity
Basic Components
Furnace Main Unit1 unit
Inspection CertificateCertificates for Major Components1 set
Technical DocumentsManual and component documents1 set
Key Components
Heating ElementCustomized1 piece
Rotary Vane Vacuum Pump4L/s BaoSi DRV161 set
Quartz TubeCustomized1 unit
Vacuum FlangeCustomized1 set
Touch ScreenKunlun Tongtai TPC1071Gn1 unit
Temperature Control ModuleYamatake NX-D151 unit
Molecular Pump600L/s FF-160/6201 unit
Compound Vacuum GaugeRuibao ZDF-5227AZ1 set
Spare Parts
Solid State Relay1 piece
Operating Conditions
  • Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, no corrosive gases, no strong airflow disturbance
  • Water Supply: Clean, non-corrosive, pressure 0.1-0.3 MPa, consumption 2-5 L/min, temperature ≤25ºC
  • Gas Supply: High-purity nitrogen (purity >99.999%), pressure 0.1-0.2 MPa, consumption 2-6 m³/h; Dry compressed air (pressure 0.4-0.8 MPa)
  • Ventilation: Non-contact exhaust system with capacity >10 m³/h
  • Floor Requirements: Level, minimal vibration, load capacity >500 kg/m²
  • Power Supply: >35 kVA, 3-phase 5-wire, AC 380 V, 50 Hz
  • Installation Space: 3000×1500×3000 mm (D×W×H), area >5 m²
Side view of HTF2550-07 furnace showing dimensions and layout
