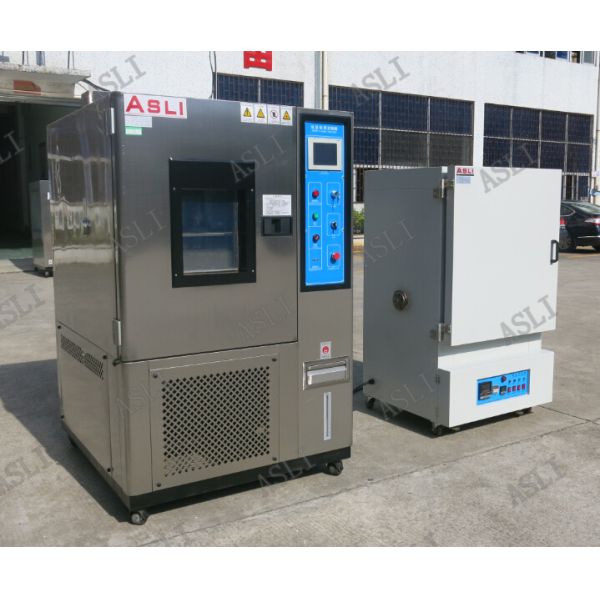

Cooling Temperature Calibration Conditioning Temp Humidity Test
Chamber
These test chambers are designed for evaluating the performance of
various products including aerospace components, electronics,
instruments, materials, food products, chemicals, building
materials, and medical devices under high-low temperature or
temperature and humidity alternating environments.
Technical Specifications
| Model | TH-225(A~F) | TH-408(A~F) | TH-800(A~F) |
|---|
| Internal Dimension WxHxD (mm) | 600x750x500 | 600x850x800 | 1000x1000x800 |
| External Dimension WxHxD (mm) | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 |
| Temperature Range | Low Temperature (A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High
Temperature 150℃ |
| Humidity Range | 20%~98% R.H. (10%-98% R.H. / 5%-98% R.H optional, requires
dehumidifier) |
| Control Accuracy | ±0.5℃; ±2.5% R.H. |
| Temperature Rising/Falling Velocity | Temperature rising approx. 0.1~3.0℃/min; temperature falling
approx. 0.1~1.0℃/min (Falling Min.1.5℃/min optional) |
| Inner and Outer Material | Interior: SUS 304# stainless steel, Exterior: stainless steel or
SEE cold-rolled steel with paint coating |
Key Features
- Adjustable air outlet for optimal temperature/humidity regularity;
triple independent temperature security protection system
- Copper evaporator coils, fins, and connectors with heat transfer
coefficient over 20, preventing chemical coupling from stainless
steel or aluminum
- Advanced control system with mechanical refrigeration capable of
reaching -90ºC
- Modern "L" solid design with customizable colors and appearance
effects
- Large temperature range: -40ºC~200ºC with 2.0mm thickness sheet
metal
- Unique temperature and humidity control range capabilities
- Automatic watering system with drawer-type hidden water tank and
water recovery system with level sensor
- Competitive pricing with high quality and comprehensive after-sales
service
Product Images
Related Products
Thermal Shock Test Chamber
Temperature Humidity Vibration Test
Acceleration Mechanical Shock Tester
About Our Company
With 28 years of experience, we are a leading manufacturer of
simulation environmental testing equipment and mechanical vibration
and shock testing machines. Our Cooling Temperature Calibration
Conditioning Temp Humidity Test Chamber is a star product that has
obtained CE certification.
