Temperature and Humidity Calibration Chamber
The Temperature Humidity Test Chamber, also known as an
environmental testing machine, is designed to test material
tolerances for heat, cold, dry, and humid conditions. This
equipment is essential for quality inspection across various
industries including electronics, appliances, communications,
instruments, automotive, plastics, metals, food, chemicals,
building materials, medical devices, and aerospace.
Key Features
- Space-saving footprint with flush wall installation design
- Stainless steel exterior construction
- Full thermal break around door frame
- One 50mm (2") diameter cable port on left side with flexible
silicone plug
- Three levels of overheat protection plus over-cool protection
Product Specifications
| Model | TH-225(A~F) | TH-408(A~F) | TH-800(A~F) | TH-1000(A~F) |
|---|
| Internal Dimension | W600*H750*D500mm | W600*H850*D800mm | W1000*H1000*D800mm | W1000*H1000*D1000mm |
| External Dimension | W1200*H1900*D1150mm | W1200*H1950*D1350mm | W1600*H2000*D1450mm | W1600*H2100*D1450mm |
| Temperature Range | Low Temperature (A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High
Temperature 150°C |
| Humidity Range | 20%~98% R.H. (10%-98% R.H. / 5%-98% R.H optional, requires
dehumidifier) |
| Temperature/Humidity Resolution & Uniformity | 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H. | ±0.5°C; ±2.5% R.H. |
| Temperature Rising/Falling Velocity | Temperature rising approx. 0.1~3.0°C/min; temperature falling
approx. 0.3~1.0°C/min (Min. 1.5°C/min falling optional) |
| Inner and Outer Material | Interior: SUS 304# stainless steel; Exterior: stainless steel or
cold-rolled steel with paint coating |
| Cooling System | Wind cooling or water cooling (single segment compressor -40°C,
double segment compressor -70°C) |
Product Configuration
Additional Features
- Elegant appearance with circular body and mist strip surface
treatment

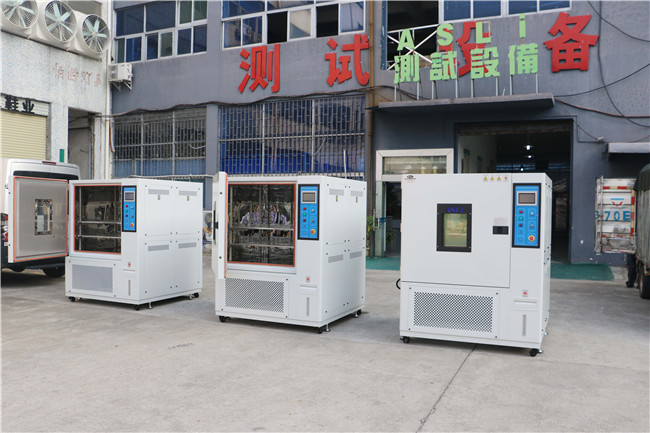

- Rectangular double-paned viewing window with interior lighting
- Double-layer insulated airtight doors for effective temperature
insulation
- Externally connectable water supply system with automatic recycling
- French Tecumseh compressor using environmentally friendly R23 or
R404A refrigerant
- LCD display showing measured values, set values, and time
- Multi-segment program editing with quick or ramp rate
temperature/humidity control
- Mobility casters with strong positioning screws
