CHM 1400 Single Rotary Sheeter Paper Sheeting Machine
CHM Machinery Single Rotary Paper Sheeting Machine offers precision
paper cutting solutions for various applications in printing,
packaging, and paper supply industries.
Product Overview
CHM-1100/1400/1700/1900 Precision High Speed Single Rotary Knife
Paper Sheeter Machine is a servo-driven system delivering high
speed, precision, and efficiency. Capable of processing wide range
of materials including paper, board paper, art paper, and kraft
paper.
Machine Configuration
- Unwind Stand: Automatic tension system with multi-point automatic
braking
- Auto-EPC (Edge Paper Control)
- Deculler System (Anti-curvature Device)
- Middle Slitting and Waste Edge Collecting System
- High precision single rotary sheet cutter

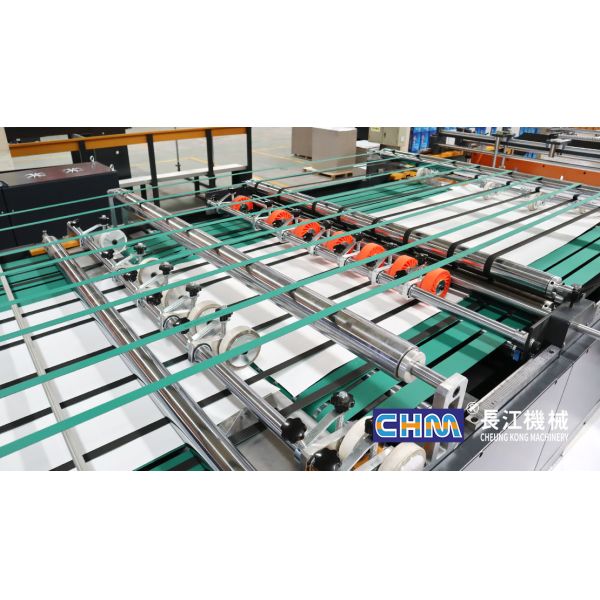

- Paper Conveyer System

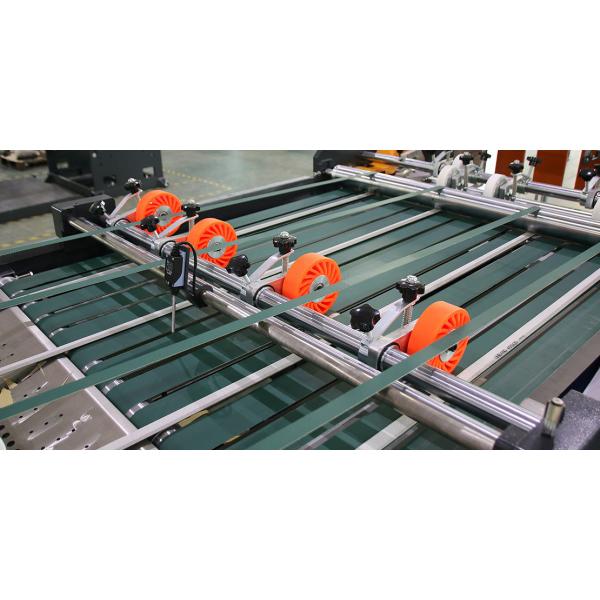

- Electrostatic eliminator System
- Auto-Squareness Adjustment System
- Auto counting and Label inserting device
- Auto Jogger System
Technical Description
CHM Machinery specializes in computerized high-precision single
rotary sheeters designed for paper mills, paper distributors, and
printing houses. This advanced equipment enhances slitting capacity
while ensuring superior quality output.
The single-drum sheeter employs a "Top blade rotary, bottom blade
fixed" flying shear design, where the lower blade remains
stationary during paper transport while the upper blade rotates
continuously at high speed. The AC servo-driven control system
ensures accurate and stable operation.
This machine handles paper weights from 60 to 550 gsm and can
process thin paper as light as 30 grams, with the capability to cut
8-12 rolls simultaneously at speeds up to 100 cuts per minute.
Technical Specifications
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|
| Cutting Way | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Paper Weight Range | 60-550 GSM | 60-550 GSM | 60-550 GSM |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max Cutting Speed | 300 sheets/min | 300 sheets/min | 300 sheets/min |
| Max Cutting Meter Speed | 300m/min | 300m/min | 300m/min |
| Cutting Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max Scroll Diameter | 1800mm | 1800mm | 1800mm |
| Stacking Height | 1500mm (59") | 1500mm (59") | 1500mm (59") |
| Max Paper-Cutting Width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimension (LxWxH) | 12518mm*3853mm*2230mm | 12518mm*4153mm*2230mm | 12518mm*4353mm*2230mm |
Machine Components & Operation
Optional Configuration: More Rolls Cutting
Hydraulic shaft-less unwind station
Multi-disc brake system
High precision single rotary sheet cutter
Conveyor unit
Auto Jogger System
Static Eliminator System
Middle Slitting and Waste Edge Collecting System
