| Brand Name: | Sany |
| Model Number: | SYG5371THBCB 470C-10 |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 units per month |
| Delivery Time: | 50-60 days after down payment |
| Packaging Details: | Containers, RORO ship, Cargo bulk ship |
| Price: | Negotiable |
| Dimensions: | 12760*2550*4000mm |
| Empty Weight: | 36700 kg |
| Vertical Reach: | 47m |
| Chassis Brand: | BENX |
| Chassis Model: | Acros 4140 |
| Engine Type: | OM460 Series |
| Company Info. |
| Hunan Sino-global Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

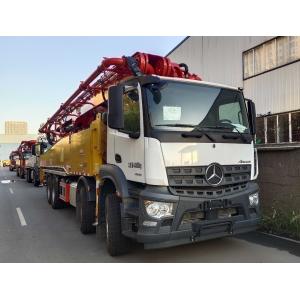

New Sany,Zoomlion, XCMG Truck-mounted Concrete Pump from 23m-88m available
We offer Sany, Zoonlion, XCMG, Putzmeister Brands;
Vertical Reach: 23m to 88m
Pump Chassis: Mercedes Benz, Volov, Isuzu or Sany (optional )
We cooperate with the most professional Chinese manufacturers such as Sany, Zoomlion, XCMG, Sinotruck etc. As a leading heavy machines supplier and exporter, Sino Global has much professional marketing experience for construction machinery overseas, also we have abundant experience for sup[liering ghe services of sales, after-sale, spare parts, survey and training. The construction machinery of above mentioned brands have been exported to more than 45 countries.
| Model | SYG5371THBCB 470C-10 | ||
Overall Specification | Length(mm) | 12760 | |
| Width(mm) | 2550 | ||
| Height(mm) | 4000 | ||
| Empty weight(kg) | 36700 | ||
Boom & Outrigger Specification | Vertical reach(m) | 47 | |
| Horizontal reach(m) | 42 | ||
| Reach depth(m) | 29.3 | ||
| Unfolded reach(m) | 13.9 | ||
1st Section | Length(mm) | 9760 | |
| Articulation(°) | 89 | ||
2nd Section | Length(mm) | 7670 | |
| Articulation(°) | 180 | ||
3rd Section | Length(mm) | 7410 | |
| Articulation(°) | 180 | ||
4th Section | Length(mm) | 9670 | |
| Articulation(°) | 235 | ||
5th Section | Length(mm) | 8545 | |
| Articulation(°) | 215 | ||
| Rotation(°) | ±360 | ||
| Front outrigger spread L-R(mm) | 8600 | ||
| Rear outrigger spread L-R(mm) | 9000 | ||
Pumping Systerm Specification | Output | Low-Pressure | 200 |
| (m3/h) | High-Pressure | 137 | |
| Pressure (MPa) | Low-Pressure | 8.3 | |
| High-Pressure | 12 | ||
| Max. strokes per minute (times/min) | Low-Pressure | 33 | |
| High-Pressure | 22 | ||
| Delivery cylinder diameter(mm) | 260 | ||
| Stroke length(mm) | 1900 | ||
| Hydraulic system | Open | ||
| Hydraulic system oil pressure(MPa) | 32 | ||
| Oil tank capacity(L) | 680 | ||
| Water tank capacity(L) | 620 | ||
| Pipeline size(mm) | 125 | ||
| End hose length(m) | 3 | ||
| End hose diameter(mm) | 125 | ||
Chassis Specification | Chassis brand | BENZ | |
| Chassis model | Arocs 4140 | ||
| Engine type | OM460 Series, inline six-cylinder | ||
| Engine maximum net power(kW/rpm) | 290/1600 | ||
| Emission standard | EURO Ⅲ | ||
| Capacity of fuel tank(L) | 390 | ||
| Displacement(L) | 12.8 | ||
| Max. speed(km/h) | 85 | ||
|
