Sany 56M Concrete Pump Trucks With Volov Isuzu Chassis

Categories Concrete Pump Trucks
Brand Name: Sany
Model Number: SYG5450THB 560C-10
Place of Origin: China
MOQ: 1 unit
Payment Terms: T/T, L/C
Supply Ability: 10 units per month
Delivery Time: 40-50 days after down payment
Packaging Details: Containers, RORO ship, Cargo bulk ship
Certification: CE ISO
Price: Negotiable
Model: SYG5450THB 560C-10
Chassis: Volvo
Chassis Model: FM500 84R B
Engine Type: D13K500EU6
Engine Power: 375/1800kW/rpm
Dimensions: 12050mm*2550*3750mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

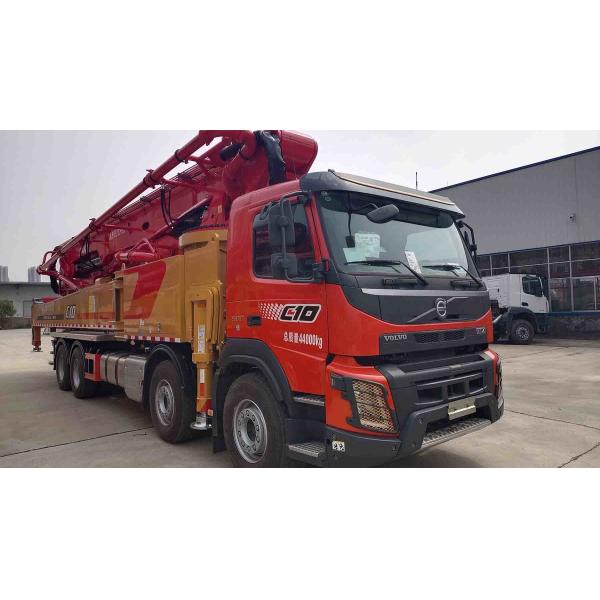

Sany 56M Concrete Pump Trucks With Volov Isuzu Chassis

New Sany,Zoomlion, XCMG Truck-mounted Concrete Pump from 23m-88m available


We offer Sany, Zoonlion, XCMG, Putzmeister Brands;

Vertical Reach: 23m to 88m

Pump Chassis: Mercedes Benz, Volov, Isuzu or Sany (optional )


We cooperate with the most professional Chinese manufacturers such as Sany, Zoomlion, XCMG, Sinotruck etc. As a leading heavy machines supplier and exporter, Sino Global has much professional marketing experience for construction machinery overseas, also we have abundant experience for sup[liering ghe services of sales, after-sale, spare parts, survey and training. The construction machinery of above mentioned brands have been exported to more than 45 countries.


ModelSYG5450THB 560C-10(SZ-EU)

X-unit

Specification

Length(mm)12050
Width(mm)2550
Height(mm)3750
Dead Weight(kg)32400
Boom & Outrigger SpecificationVertical Reach(m)56
Horizontal Reach(m)51
Reach Depth(m)36.6
Min. Unfolded Reach(m)15.2

1st Section

Length(mm)11390
Articulation(°)89°

2nd Section

Length(mm)9230
Articulation(°)180

3rd Section

Length(mm)8750
Articulation(°)180

4th Section

Length(mm)11070
Articulation(°)240

5th Section

Length(mm)8080
Articulation(°)210

6th Section

Length(mm)3350
Articulation(°)110
Rotation(°)±360
Front Outrigger Spread L-R(mm)9470
Rear Outrigger Spread L-R(mm)12530
Pumping Systerm SpecificationOutput(m3/h)172
Pressure(MPa)8.3
Max. strokes per minute(times/min)28
Delivery Cylinder Diameter(mm)260
Stroke Length(mm)1900
Hydraulic SystemOpen
Hydraulic System Oil Pressure(MPa)32
Oil Tank Capacity(L)610
Water Tank Capacity(L)600
Pipe Diameter(mm)125
End Hose Length(m)3
End Hose Diameter(mm)125
Chassis SpecificationChassis BrandVolvo
Chassis ModelFM500 84R B
Engine TypeD13K500EU6
Engine Maximum Net Power(kW/rpm)375/1800kW/rpm
Emission StandardChina Ⅵ
Fuel Tank Capacity(L)400L
Displacement(L)12.777
Max. Speed(km/h)80
