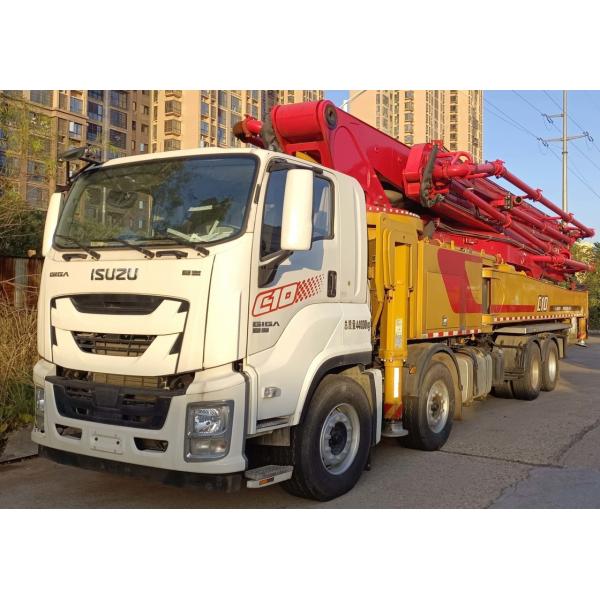

New Sany 49M Truck-mounted Concrete Pump with Isuzu Chassis

Categories Concrete Pump Trucks
Brand Name: Sany
Model Number: SYG5371THBCB 490C-10
Place of Origin: China
MOQ: 1 unit
Payment Terms: T/T, L/C
Supply Ability: 10 units per month
Delivery Time: 45--50 days after down payment
Packaging Details: Containers, RORO ship, Cargo bulk ship
Price: Ne
Model: Sany SYG5371THBCB 490C-10
Dimensions: 12760*2550*4000mm
Dead Weight: 36700 kg
Vertiucal Reacg: 48.6 m
Oil Tank: 680 L
Water Tabj: 620 K
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

New Sany 49M Truck-mounted Concrete Pump with Isuzu Chassis

New Sany,Zoomlion, XCMG Truck-mounted Concrete Pump from 23m-88m available


We offer Sany, Zoonlion, XCMG, Putzmeister Brands;

Vertical Reach: 23m to 88m

Pump Chassis: Mercedes Benz, Volov, Isuzu or Sany (optional )


We cooperate with the most professional Chinese manufacturers such as Sany, Zoomlion, XCMG, Sinotruck etc. As a leading heavy machines supplier and exporter, Sino Global has much professional marketing experience for construction machinery overseas, also we have abundant experience for sup[liering ghe services of sales, after-sale, spare parts, survey and training. The construction machinery of above mentioned brands have been exported to more than 45 countries.


Sany ModelSYG5371THBCB 490C-10

Overall

Specification

Length(mm)12760
Width(mm)2550
Height(mm)4000
Dead Weight(kg)36700
Boom & Outrigger SpecificationVertical Reach(m)48.6
Horizontal Reach(m)43.6
Reach Depth(m)30.8
Min. Unfolded Reach(m)13.9

1st Section

Length(mm)9760
Articulation(°)89

2nd Section

Length(mm)7670
Articulation(°)180

3rd Section

Length(mm)7410
Articulation(°)180

4th Section

Length(mm)9670
Articulation(°)235

5th Section

Length(mm)10060
Articulation(°)215
Rotation(°)±360
Front Outrigger Spread L-R(mm)8600
Rear Outrigger Spread L-R(mm)9000
Pumping Systerm SpecificationOutput (m3/h)Low-Pressure200
High-Pressure137
Pressure (MPa)Low-Pressure8.3
High-Pressure12
Max. strokes per minute (times/min)Low-Pressure33
High-Pressure22
Delivery Cylinder Diameter(mm)260
Stroke Length(mm)1900
Hydraulic SystemOpen
Hydraulic System Oil Pressure(MPa)32
Oil Tank Capacity(L)680
Water Tank Capacity(L)620
Pipe Diameter(mm)125
End Hose Length(m)3
End Hose Diameter(mm)125
