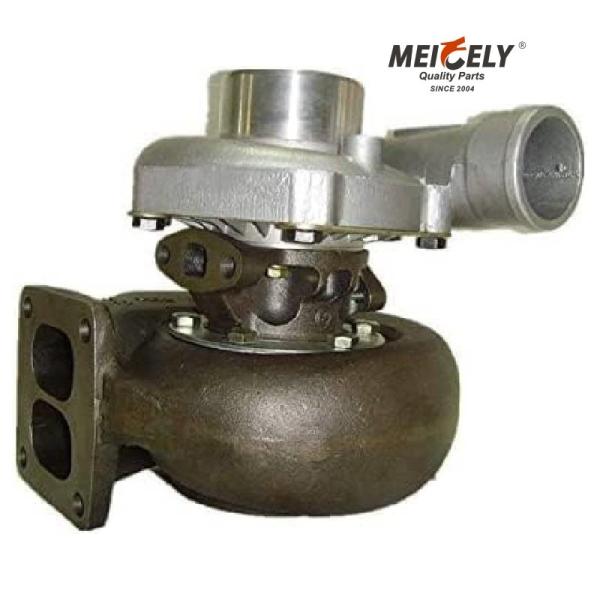

7000 ccm Diesel Engine Turbocharger T04B91 409410-0001 4N6858 4N-6858 409410-5001S 409410-1 Turbocharger For 3304 Engine

Diesel Engine Turbocharger New T04B91 409410-0001 4N6858 4N-6858 409410-5001S 409410-1 Turbocharger For 3304 Engine

Specification:

Description:

Part Number 409410-5001S
Previous Version 409410-0001 409410-1
OE number 4N6858 4N-6858
Description For Earth Moving
CHRA 408077-0102 (408077-5102S 4N6860 4N4780 0R5888)
Turbo Model T04B91
Engine 3304
Fuel Diesel
Displacement 7000 ccm 4 Cylinders
Machine Engine 3304
Generator Set Engine 3304
Generator SR4
Industrial Engine SR4 3304 D330C
Excavator 225
Motor Grader 120G 130G 12G 130G 140G
Track-type Loader 941 941B 951B 951C 955K 955L
Track-type Tractor D4D
Wheel-type Skidder 518
Wheel-Type Loader 920 930 950
Angle (compressor housing) 168º
Angle (turbine housing) 15º
Bearing Housing 430027-0051 (430027-0035 430027-0031)(2P**35)
Turbine Wheel 451309-0003 (1555236)(446905-0007)(Ind. 74.5 mm Exd. 64.7 mm 11 blades) (1100040436)
Comp. Wheel 409179-0018 (4N6861)(Ind. 48.35 mm Exd. 70. mm Trm 50 8+8 blades S-Trim Stepped back)(1100040400)
Back plate 408045-0051 (311708C 4N6863)(408206-0002 408045-0006 408045-0034 310010 311708 104244-0000) (Dynamic) (1100040360)
Heat shield Number 409299-0001 (7N**12)
Repair Kit 468100-0000 (3524796 310063 188401-0000) (6N7236 2W0716) (1100040750)
Turbine Housing 408667-0021 NEW IN STOCK
Compressor Cover 408173-0008 (4N6862)
Gasket (turbine inlet) 407294-0001
Gasket oil inlet 210023 (55739 147837 3500681 3519762 3709737 3755739 409026-0001 409036-0000 409266-0001 210023-0000) (1900000037)
Gasket (oil outlet) 210021 (148062 311496 3519807 409037-0000 413671-0000)(1900000027)
Replaced By 409410-0002

Applications
For Caterpillar Earth Moving with 3304 Engine
