Ship Rubber Airbag Ship Launching Pneumatic Lifting Bags

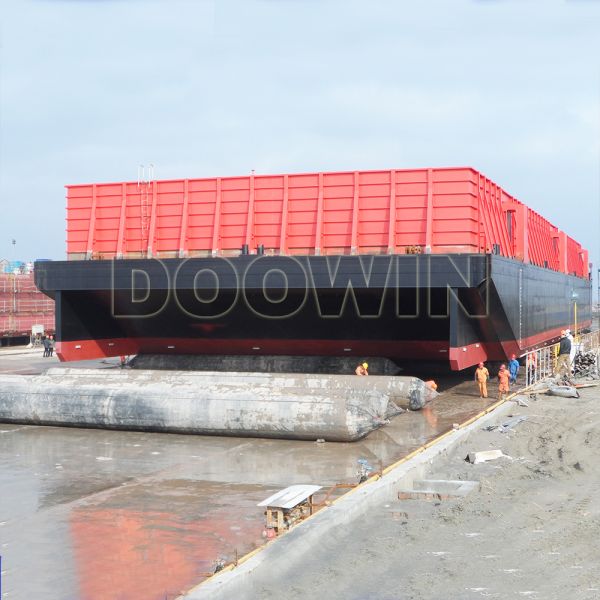

Floating marine rubber airbag for ship launching, also known as
roller bags or ship launching balloons, are made of heavy-duty
synthetic-tire-cord layers with inner and out rubber layers in a
long cylindrical balloon shape. Ship launching airbags can be used
for the ship launching or ship landing of oil tankers, tugboat or
vessels, barges, chemical tankers, tugboats, AHTS vessels, floating
docks, and even construction caissons have all been launched using
our ship launching rubber airbags. The biggest vessel launched by
ship launching airbags up to 100,000DWT.
ship launching relying on ship launching airbags is an innovative
ship launching technology, comparing with “end-on launching”, “side
ship launching”, “float-out”. This ship launching technology
overcomes the restrictions of fixed launching track of side-launch.
Ship launching airbags are accepted by more shipyards worldwide
because of their advantages of saving time, saving investment,
flexibility, safety.
All Doowin Marine ship launching airbags are manufactured and
tested fully compliant with ISO 14409:2011 Ships and marine technology — Ship launching airbags. To learn
more technology, please kindly refer ISO 17682:2013 Ships and marine technology — Methodology for ship launching
utilizing airbags

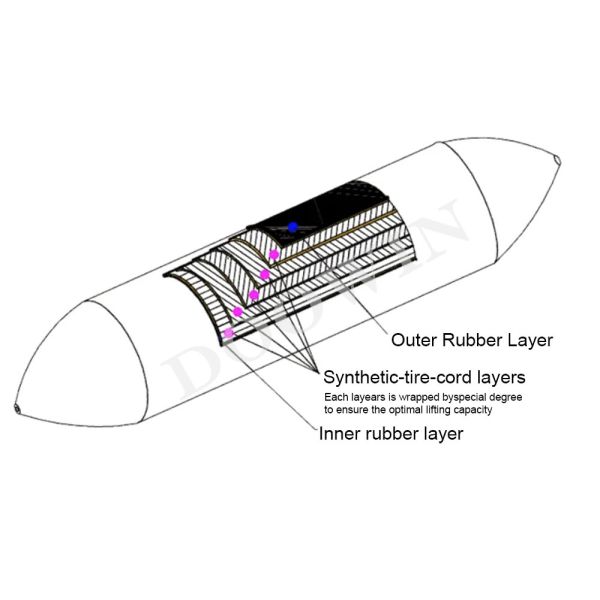

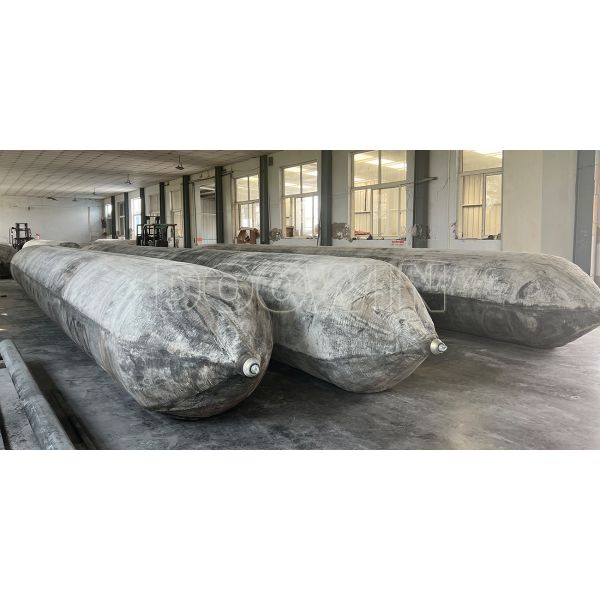

Construction of Ship Launching Airbags
Ship launching airbags are constructed with an outer rubber layer,
multilayer heavy-duty synthetic-tire-cord layers, and an inner
rubber layer vulcanized firmly. These cylindrical balloon bodies
feature two conical heads and two end mouths, with airtightness
swivel and air inlet kits screwed with end mouth.
Synthetic-tire-cord layer
The reinforcement layer of ship launching airbags consists of
rubber-coated synthetic-tire-cord fabrics. Multiple synthetic-tire
cord layers are twined at ideal angles using patented "Holistic
Wrapping Technology" to maintain internal pressure and distribute
stress evenly. We use 1870 dtex/2 type synthetic-tire-cord fabric
with warp density exceeding 95 cords per 100mm width and breaking
strength over 310N per cord.
Inner and Outer Rubber
Both inner and outer rubber layers undergo rigorous testing to meet
international standards before production. The outer rubber layer
protects cord layers from abrasion and environmental factors,
featuring compounds with exceptional tensile and tear strength for
all weather conditions and demanding applications.
Standard ship launching airbag package includes:
- The end of the airbag body
- End flange (Q235 H.D.G)
- Sealing Washer
- Three-direction connector at the inflate end (Q235 H.D.G)
- 3/4′ Ball Valves at the inflate end (Brass)
- Hose connection at the inflate end (Q235)
- High-quality Pressure Gauge
- End plug at the tightness end (Q235 H.D.G)
Classification of Ship Launching Airbags
Ship launching airbags are categorized by bearing capacity per
meter length, determined by the number of synthetic-tyre-cord
layers which establishes the Safety Working Pressure. Custom
configurations are available upon request.
- QP - Ordinary airbag: 3, 4 or 5 layers of cord fabric
- QG - High-bearing capacity: 6, 7, or 8 layers of cord fabric
- QS - Superhigh-bearing capacity: 9, 10, or more layers of cord fabrics

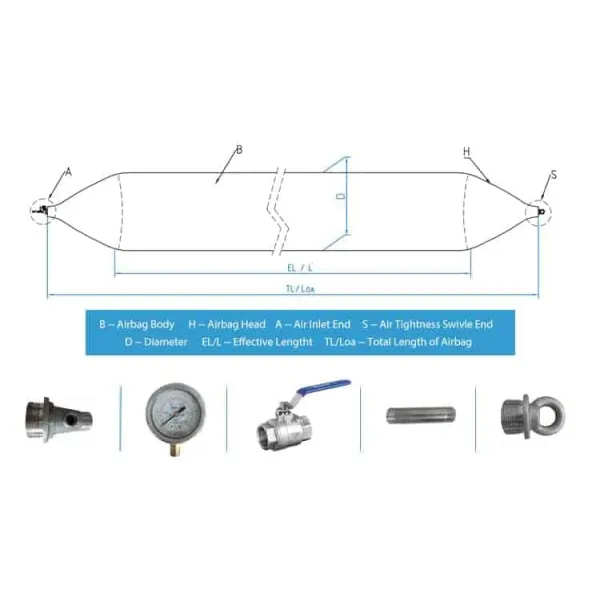

Ship Launching Airbags Specifications
| Parameter | Value |
|---|
| Product Name | Ship Launching Marine Rubber Airbags |
| Diameter (D) | 0.8 ~ 3m, or customized diameter |
| Effective Length (EL) | 3 ~ 30m, or customized length |
| Total Length (TL) | 3 ~ 32m, or customized length |
| Loading Capacity | 10 ~ 40 ton/m, or customized capacity |
| Model of Airbags | QP-ordinary, QG-high-bearing, QS-superhigh bearing |
Ship Launching Airbags Performance Data
| Type No. | Diameter (m) | Initial Internal Pressure for Test (kPa) | Rated Working Pressure (kPa) | Bearing Capacity at 70% compress deformation (KN/m) | Minimum Burst Pressure (kPa) |
|---|
| QP5 | 0.8 | 48 | 210 | 184 | 630 |
| 1.0 | 35 | 170 | 186 | 510 |
| 1.2 | 28 | 140 | 185 | 420 |
| 1.5 | 20 | 110 | 181 | 330 |
| 1.8 | 16 | 90 | 178 | 270 |
| 2.0 | 14 | 80 | 176 | 240 |
Ship Launching Airbags Features & Advantages
Superior Manufacturing & Quality Control Processes from the
selection of raw materials to the highly skilled production
process.
Heavy Duty Ship Launching Marine Rubber Airbags ISO 14409 Compliant
