AS/RS (VFR+VNA+Q1P),VFR+Very Narrow Aisle+ Large and Small Car ,Very Narrow Aisle Fork-type Autonomous Mobile Robot for Warehouse Pallet Stacking And Handling

AS/RS + VFR

(VFR+Very Narrow Aisle+ Large and Small Car)

——

Very Narrow Aisle Fork-type Autonomous Mobile Robot

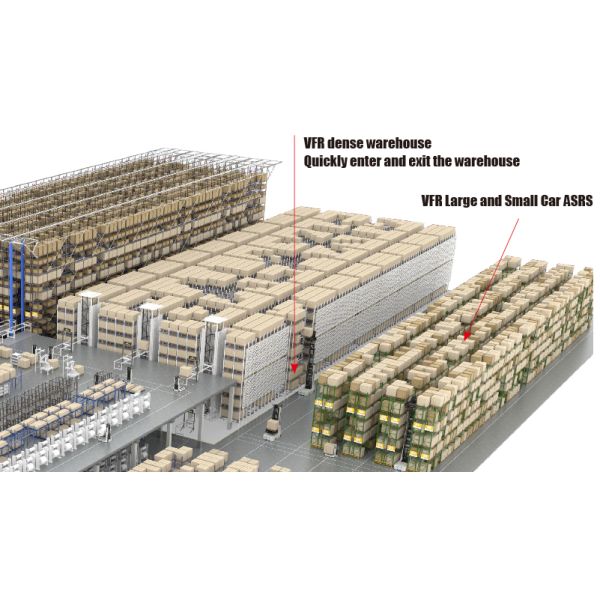

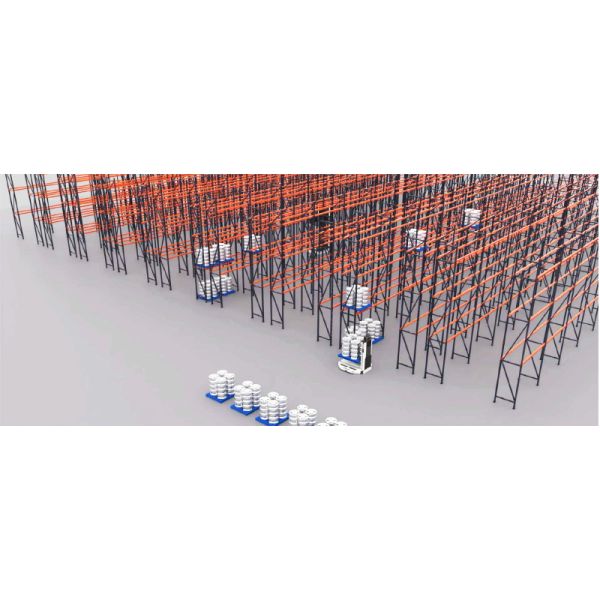

• VFR Large and Small Car AS/RS is a combined AS/RS solution for VFR series products. Through small cars handling flat handling, large cars handling high-level lifting and unloading, and cooperation between large and small cars, a tray vertical warehouse solution with high overall efficiency, low cost, and large cache capacity is achieved.
• The "small car" of VFR large and small car AS/RS can go deep into the tunnel for pallet connection. The connection position for the upper and lower rack of the AS/RS is set at the lower level of the tunnel. The "large car" only needs to connect with the pallet in the tunnel to complete the upper and lower rack. The walking distance of the large car is greatly reduced, and compared with the traditional "unmanned forklift with VNA connection", it is more efficient.
• The VFR large and small car AS/RS uses a "small car" to undertake the loading and unloading and handling of low-level goods in the tunnel, and uses a "large car" to focus on the loading and unloading of high-level goods. The workload of the large car is reduced, and the required quantity is reduced. Compared with the traditional "unmanned forklift with VNA connection", the cost is lower
• The "small car" of VFR large and small car AS/RS can penetrate deep into the aisle, and the lower level of the shelves are all storage and retrieval buffer positions. The overall anti sudden flow ability of the vertical warehouse is strong, and it is not easy to cause cargo accumulation. Compared with the traditional "unmanned forklift with VNA connection" buffer, it is larger.
• The "small car" of VFR large and small car AS/RS can penetrate deep into the aisle, and the lower levels of the shelves are all directly accessible without the need for connection. High frequency goods stored on the lower levels of the racks can be quickly accessed, and the flow limit from high-frequency goods and pallets to human picking is higher, compared to the traditional "unmanned forklift with VNA connection" flow limit.

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

• The 'small car' is transported deep into the tunnel, while the 'large car' focuses on loading and unloading, reducing the walking distance and increasing efficiency.
• The 'small car' undertakes the task of low-level shelves, reduces the workload of 'large cars', reduces the demand for the number of' large cars', and has low costs.

• All shelves at the lower level are 'cache spaces', with a large warehouse cache and no accumulation of goods.

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

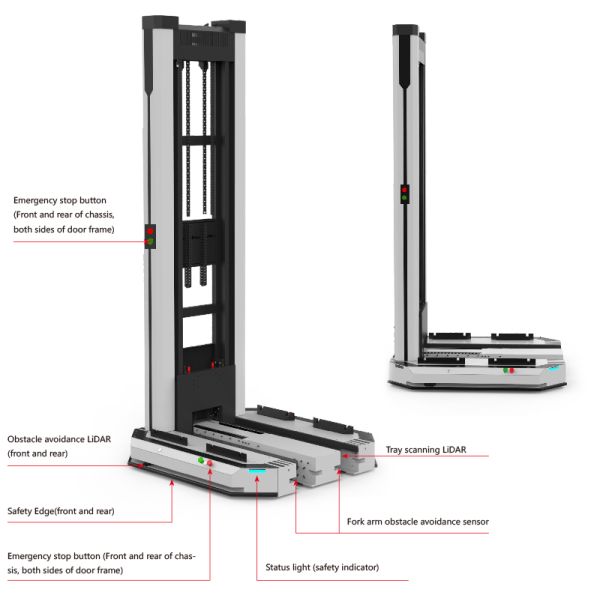

AMR Basic Structure

—

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

Performance Characteristics

—

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

VFR Advantages

—

VNA Fork-type AMR Advantages

Very Narrow Aisle Fork-type Autonomous Mobile Robot

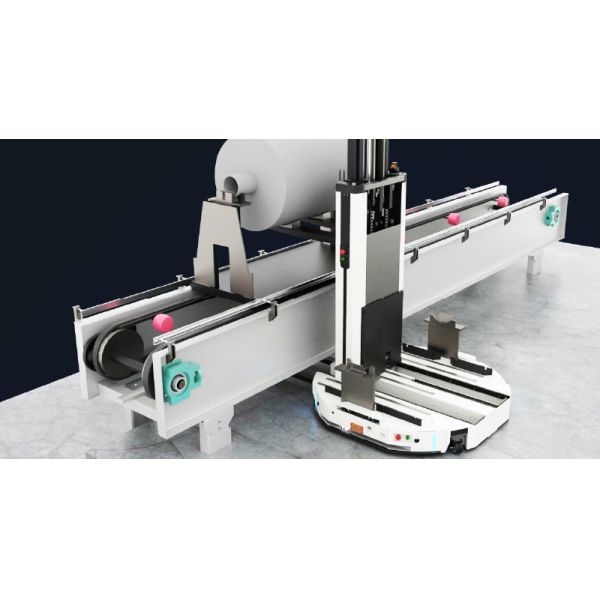

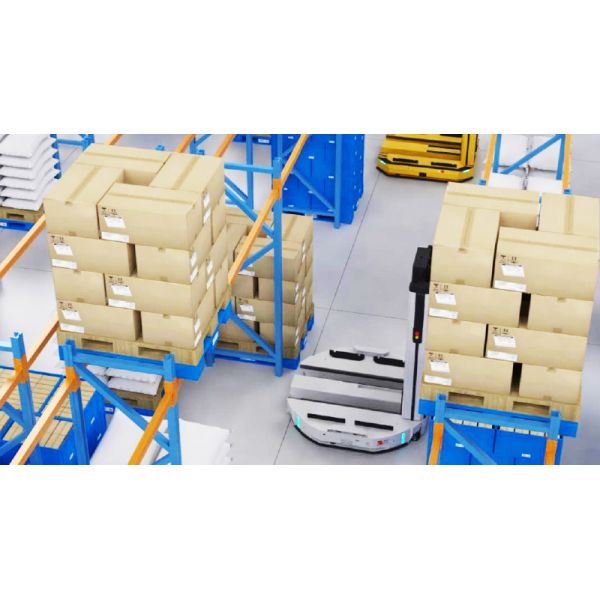

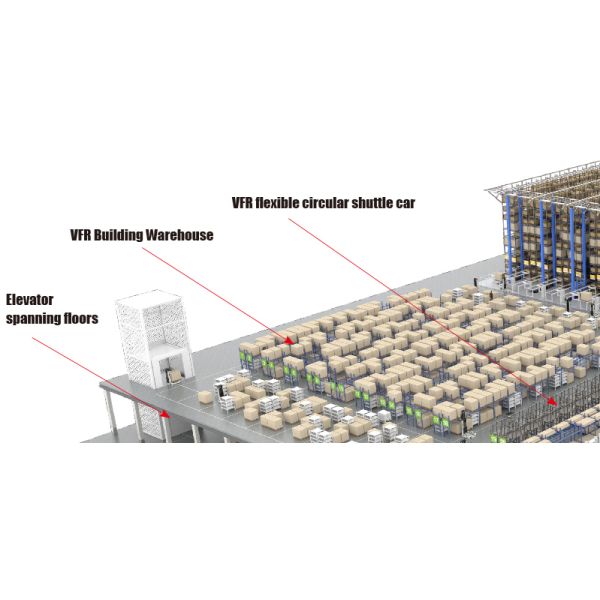

Rich application scenarios: not only can it seamlessly connect with the ground pallet, but it can also be flexibly lifted to accurately dock with various connection ports, and can be extended to high positions to achieve efficient docking with heavy duty pallet rack; Seamless coordination with elevators ensures safe, timely, and fully automated operation within warehouse facilities.
Intelligence: The laser radar intelligently determines the angle of the pallet fork hole and autonomously corrects it to complete the pallet fork removal.
Security and stability: Considering the complexity of scene security from all aspects, multiple types of sensors have been added, which comply with CE certification and ISO3691-4 international standards.
High precision and efficiency: Our self-developed multi-sensor fusion algorithm utilizes SLAM technology for global positioning, combined with QR codes and reflective stickers for precise positioning, with a positioning time of only 1.5 seconds.
Adaptability: Suitable for multi material pallets, with a brand new and robust chassis structure, ensuring stability under heavy loads and ground adaptability.

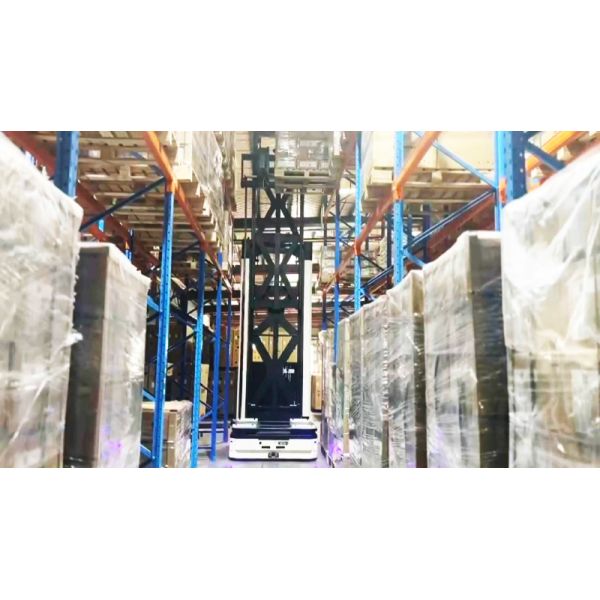

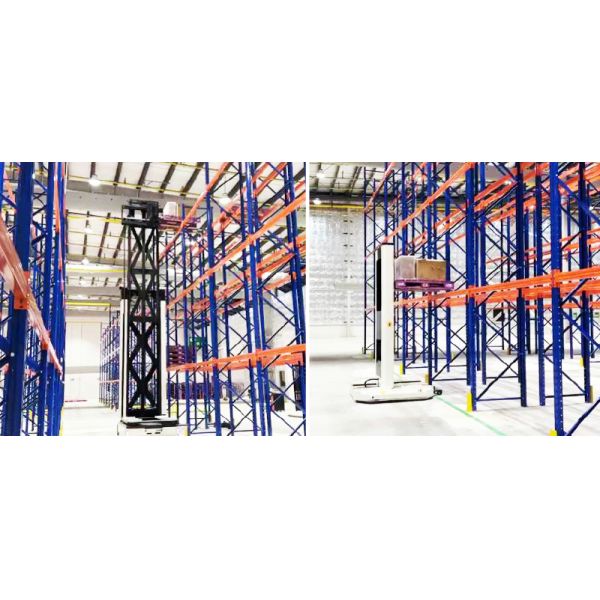

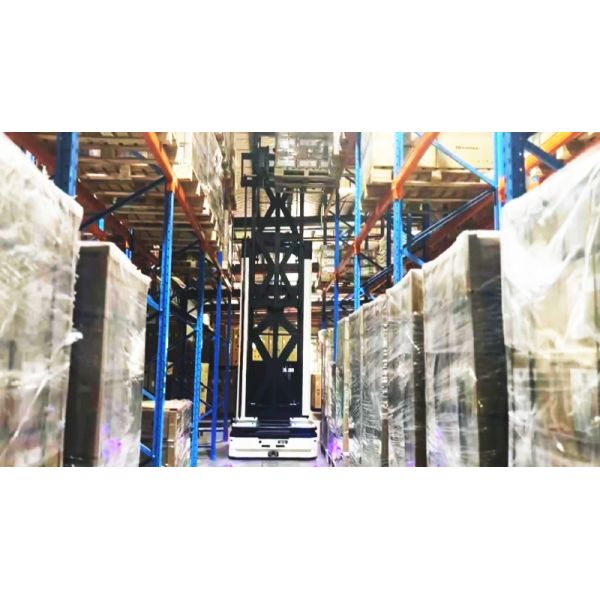

High density storage: extremely narrow tunnels, as low as 1.65 meters, compact body, storage density increased by 80% compared to traditional stacks; Optimize storage efficiency in the floor warehouse environment and support automated high-density access in vertical layout facilities.

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

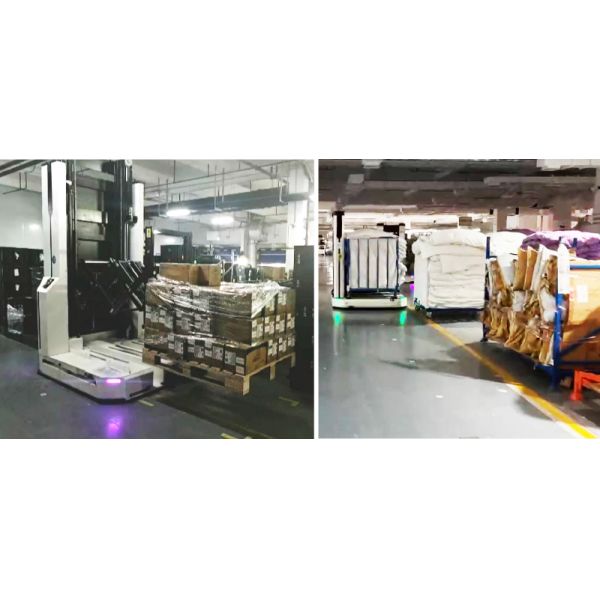

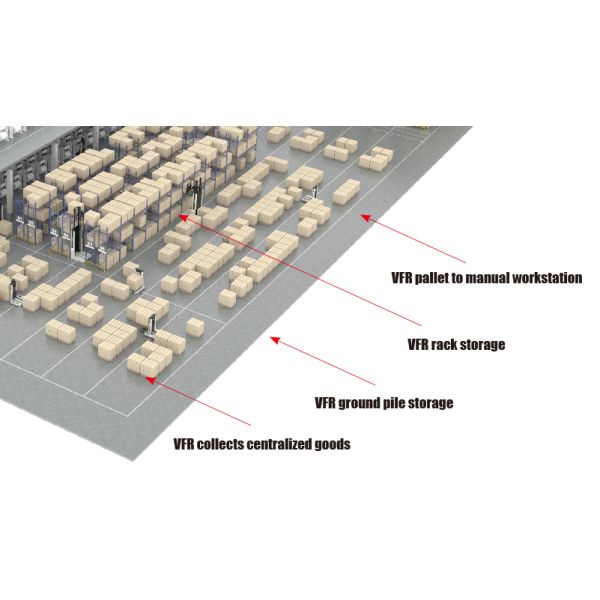

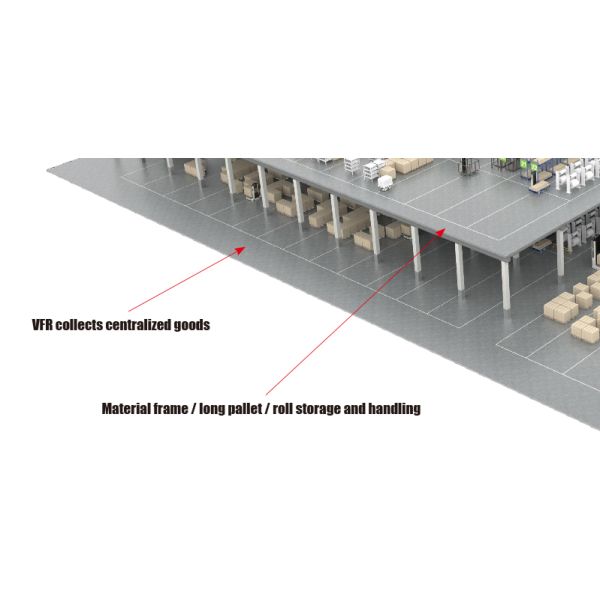

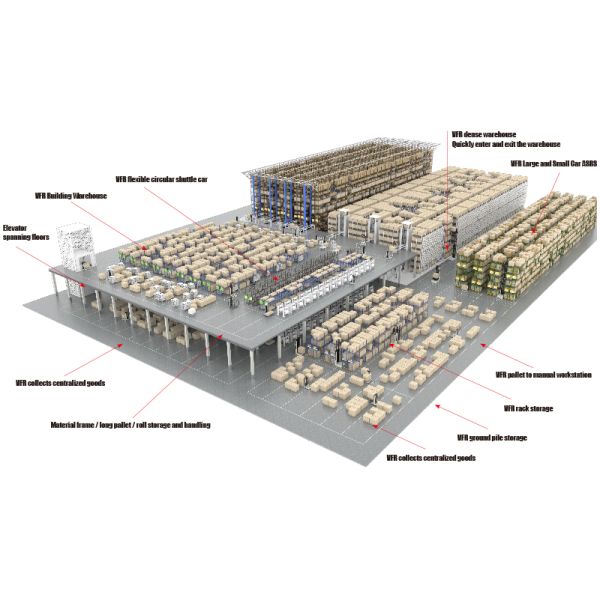

Product application scenarios

—

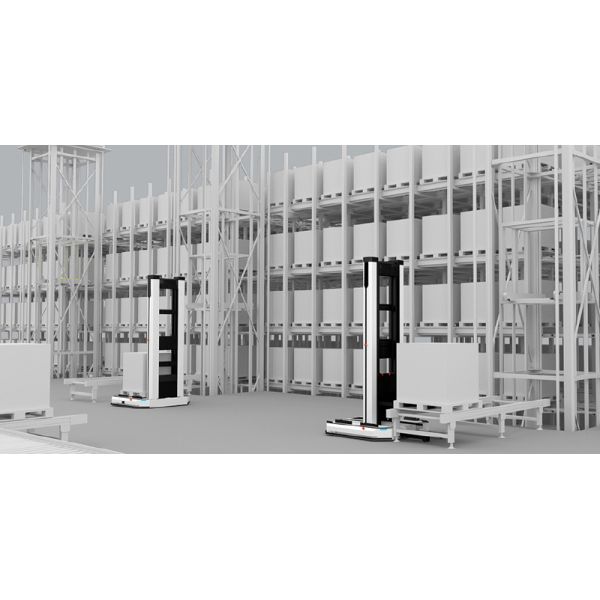

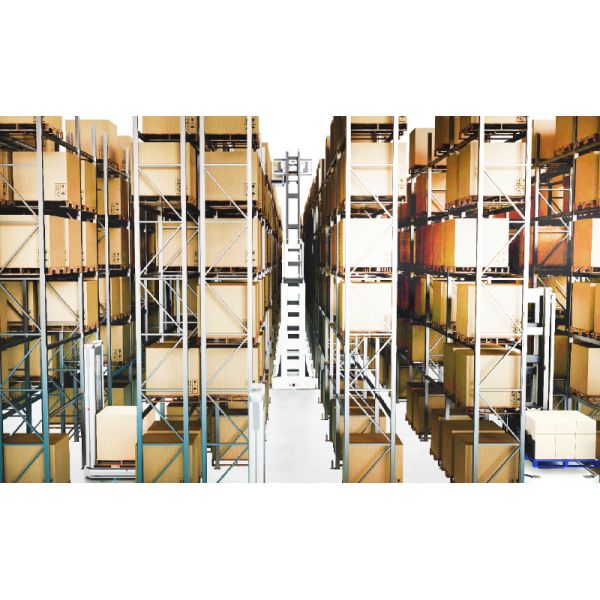

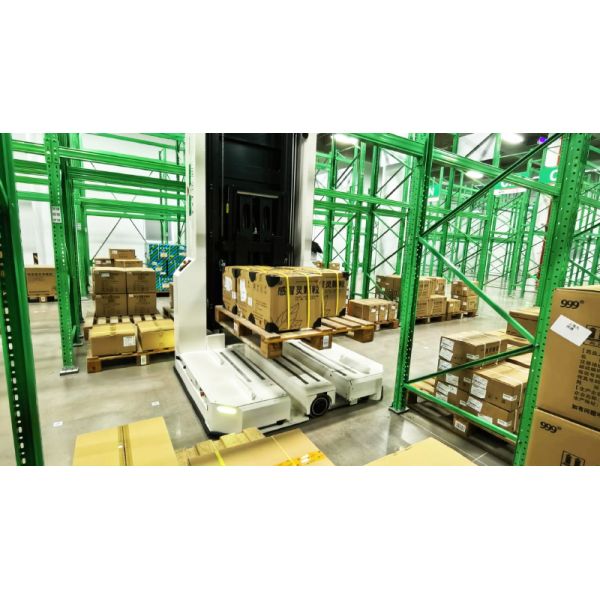

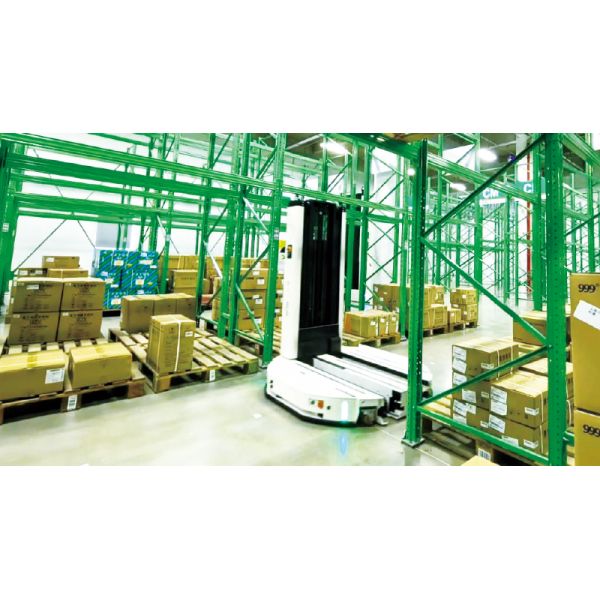

Very narrow aisle AS/RS connection

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

Project Introduction

—

Pharmaceutical industry project: With a storage capacity of 125000 pieces, 100% compliant with GSP third-party logistics standards, it can support a sales scale of 6 billion yuan for 3-5 years.

Pharmaceutical industry project: This smart logistics system can meet the daily delivery needs of 1646 stores for the enterprise,320000 orders are split into parts daily.

Pharmaceutical industry project: The overall plan for this project includes over 1500 pallet storage locations, more than 13000 material box storage locations, and 406 sets of mobile material racks. 100% meet the internal logistics handling needs of enterprises, with high flexibility and scalability.

Third party logistics projects in the pharmaceutical industry: Improve the efficiency of cargo collection and delivery through highly automated and intelligent logistics systems. The logistics system can build a logistics warehousing and distribution network.

New energy battery project: Improve the efficiency of material storage and handling, and achieve precise and fast order processing.

Electronic manufacturing industry project: The project design plans 9600 pallet storage locations and introduces core equipment such as side fork mobile robots to achieve precise and fast operation processing. At the same time, the supporting intelligent logistics system also has high flexibility and scalability, providing a solid logistics foundation for future business growth. VFR connects the logistics and handling operations within the factory, achieving 100% automation of handling.

Stationery Industry Project: Achieving Intelligent and Automated Logistics Operations in Pen Manufacturing Plants. VFR significantly enhances the efficiency of internal material storage and handling within factories, meeting enterprises' demands for efficient storage and rapid outbound of raw materials, semi-finished products, finished goods, and other materials. This greatly improves factory production efficiency and logistics management capabilities.

Image and Vision Industry Projects:
• All models adopt the SLAM+QR code navigation method to reduce the impact of QR codes on the ground.
• Seamless integration of production line shelves, conveyor lines, and other equipment to improve efficiency.
• RCS hybrid scheduling, multiple models running in parallel to improve site energy efficiency.

Home textile industry project: Implement intelligent scheduling of logistics vehicles in the park, connect logistics systems in four storage areas and one workshop, and achieve automated logistics operations within the factory.

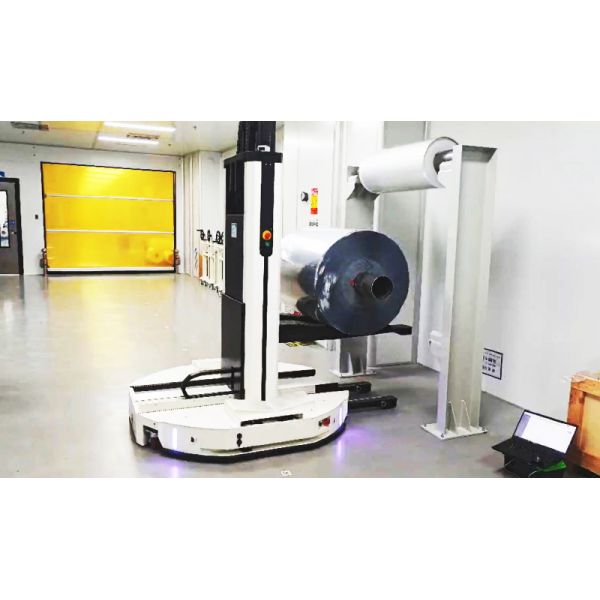

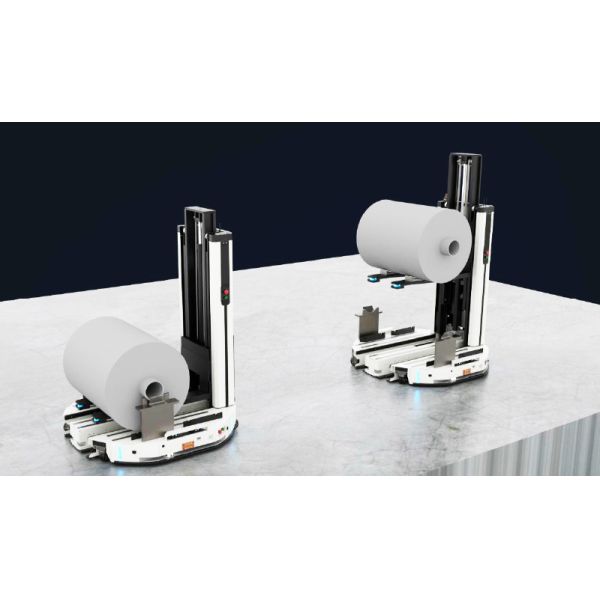

Food Packaging Project: Covering differentiated requirements such as standard load capacity, 1.3-ton heavy load, and 4.2-meter-high lifting. Customized equipment solutions for the entire process of coil storage and transportation. Ensure the safe and efficient transportation of coil materials. Effectively supporting the sustainability and competitiveness of customer supply chains.

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

ABOUT US

—

Anhui Huayide Intelligent Storage Equipment Co., Ltd. (the promitive name Anhui Huarunde logictics equipment Co., Ltd, Establised in 2009) is located in Hefei Binhu Science City, Anhui Province. It focuses on the development and promotion of intelligent logistics equipment, integrating scientific research and development, manufacturing, system integration, marketing and engineering services, committed to providing world-class internationally competitive intelligent logistics equipment, products and solutions, covered automation and intelligent manufacturing. Our products are widely used in power, automotive, chemical, logistics, public utilities, manufacturing and other industries.

We have strong technical, relying on the deep cooperation between Anhui Polytechnic University, research institute of University of Science and Technology of China and well-known enterprises. In the process of product research and development, it has absorbed a large number of advanced technologies and concepts,possesses comprehensive technical research and development capabilities of intelligent logistics equipment. We have extremely profound accomplishments project planning, intelligent manufacturing, intelligent electrical control, computer software development, and engineering project management .

We have:
professional shelf raw material strength testing machine , column load testing machines and beam load testing machines.

We have:
a complete set of shelf surface coating quality testing equipment: cross-cut testing machine, cupping testing machine, electronic magnetic thickness gauge, gloss measuring instrument, salt spray testing machine, etc.

We have passed :
IS09001 quality system certification, IS014001 environmental system certification, ISO18001 occupational health system certification. Tested by the European research institute, we passed various indicators such as safety and environmental protection, obtained CE certification, and obtained a sales pass to enter the European market.
