VFR-CL1,VNA Fork-type AMR,Very Narrow Aisle Fork-type Autonomous Mobile Robot CL Serie stype 1 for Warehouse Pallet Stacking And Handling

VFR-CL1 ( VNA Fork-type AMR )

Very Narrow Aisle Fork-type Autonomous Mobile Robot

VFR Fork-type AMR CL Serie stype 1

• The VFR-CL1 is the first product in the VFR series, featuring a "lateral extension fork design" that eliminates the need for steering when loading and unloading in tunnels. This design removes the requirement for turning space in tunnels, allowing the tunnel width to be reduced to 1.65m;
• Since no turning is required for loading and unloading in the aisle, the VFR-CL1 can extend its forks immediately upon reaching the target position to pick up or deliver goods. This eliminates the steering steps compared to traditional forklifts, resulting in faster loading and unloading efficiency;
• The chassis of the VFR-CL1 is equipped with a vision camera for code reading, supporting QR code navigation with a positioning accuracy of up to ±5mm;
• The VFR-CL1 can achieve a foldable disc;

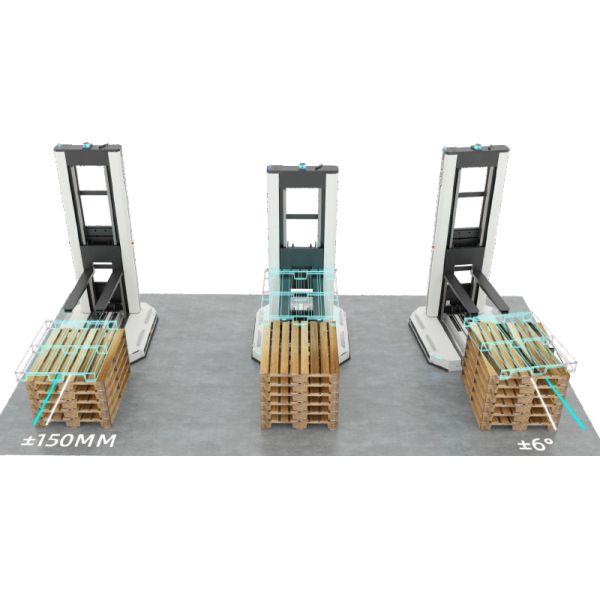

• VFR-CL1 can autonomously identify the position and orientation of pallet containers, adjust and correct deviations, and complete the docking.

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

Performance Characteristics

—

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

VFR-CL1 Advantages

—

• Intelligence: Multi-type LiDAR fused with computer vision technology, intelligently addressing "recognition" and "safety."
• Safe Positioning: Ensures scenario safety, complies with ISO 3691-4 international standards, and is CE-certified

• The tunnel width narrows to 1650mm, enabling higher-density storage
• Stop precisely at the dock, extend the forks accurately, minimize turning movements, and achieve faster pallet storage and retrieval
• With a precision of up to ±5mm and Automatically organize and stack pallets

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

Product Application

—

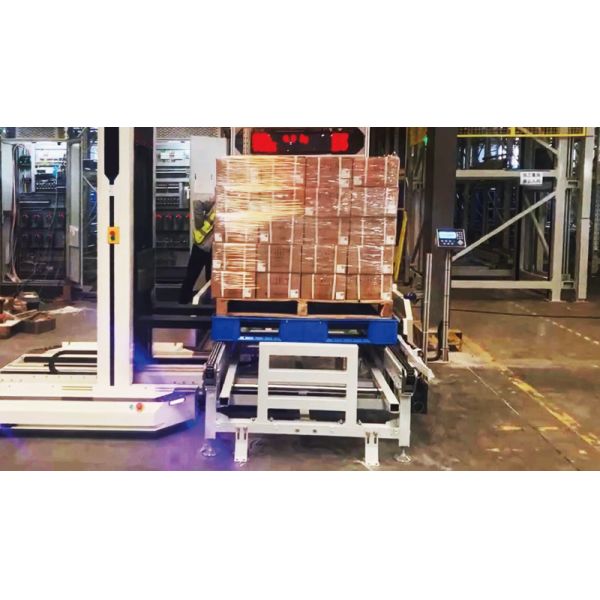

Conveyor line docking

Production line connection

Ultra narrow alleyway vertical warehouse connection

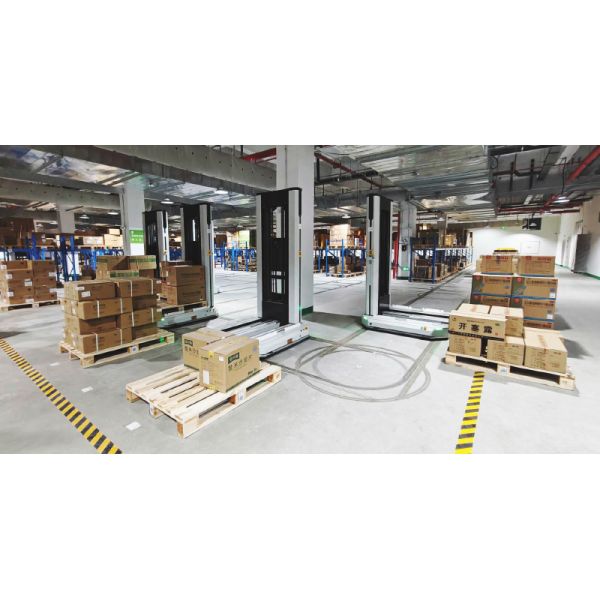

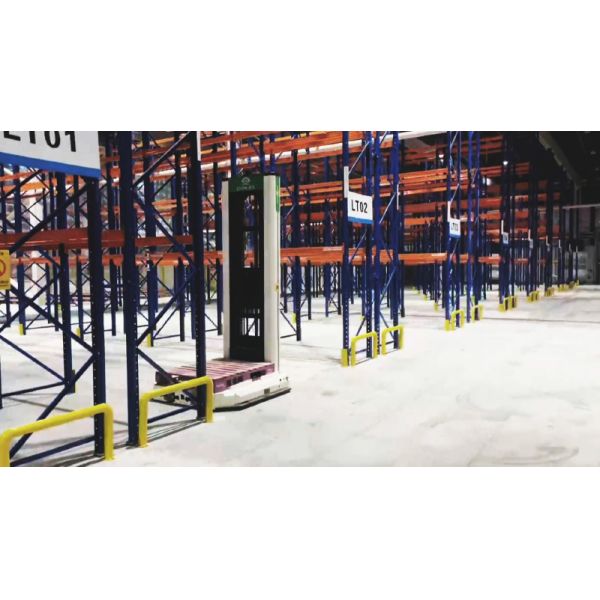

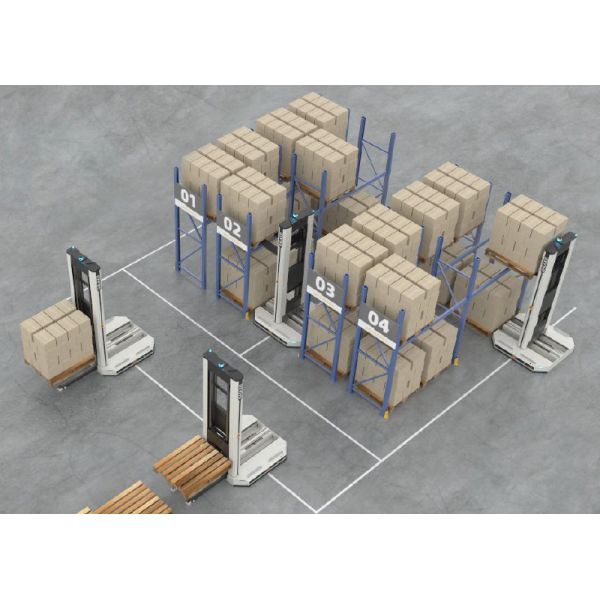

High density warehouse pallet storage

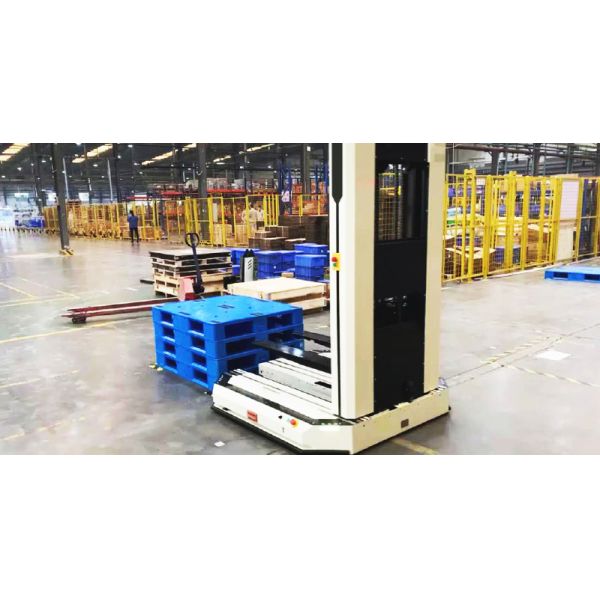

Empty pallet disassembly and stacking

Pallet to person picking

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

VFR Advantages

—

VNA Fork-type AMR Advantages

Very Narrow Aisle Fork-type Autonomous Mobile Robot

Rich application scenarios: not only can it seamlessly connect with the ground pallet, but it can also be flexibly lifted to accurately dock with various connection ports, and can be extended to high positions to achieve efficient docking with heavy duty pallet rack; Seamless coordination with elevators ensures safe, timely, and fully automated operation within warehouse facilities.
Intelligence: The laser radar intelligently determines the angle of the pallet fork hole and autonomously corrects it to complete the pallet fork removal.
Security and stability: Considering the complexity of scene security from all aspects, multiple types of sensors have been added, which comply with CE certification and ISO3691-4 international standards.
High precision and efficiency: Our self-developed multi-sensor fusion algorithm utilizes SLAM technology for global positioning, combined with QR codes and reflective stickers for precise positioning, with a positioning time of only 1.5 seconds.
Adaptability: Suitable for multi material pallets, with a brand new and robust chassis structure, ensuring stability under heavy loads and ground adaptability.

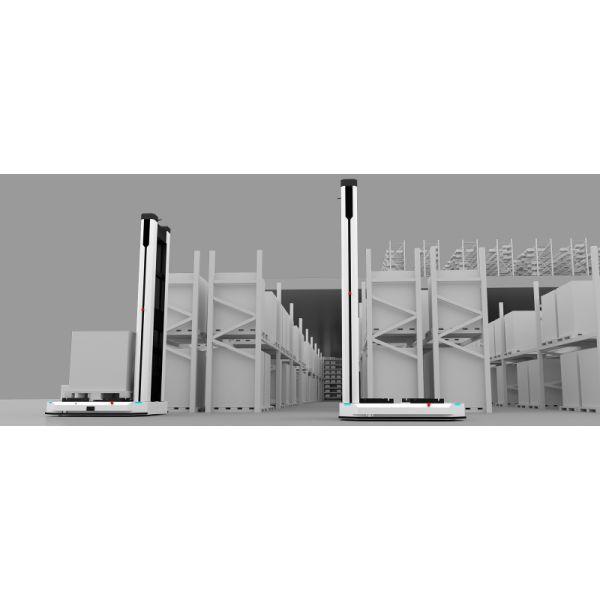

High density storage: extremely narrow tunnels, as low as 1.65 meters, compact body, storage density increased by 80% compared to traditional stacks; Optimize storage efficiency in the floor warehouse environment and support automated high-density access in vertical layout facilities.

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

Project Introduction

—

Pharmaceutical industry project: With a storage capacity of 125000 pieces, 100% compliant with GSP third-party logistics standards, it can support a sales scale of 6 billion yuan for 3-5 years.

Pharmaceutical industry project: This smart logistics system can meet the daily delivery needs of 1646 stores for the enterprise,320000 orders are split into parts daily.

New energy battery project: Improve the efficiency of material storage and handling, and achieve precise and fast order processing.

Stationery Industry Project: Achieving Intelligent and Automated Logistics Operations in Pen Manufacturing Plants. VFR significantly enhances the efficiency of internal material storage and handling within factories, meeting enterprises' demands for efficient storage and rapid outbound of raw materials, semi-finished products, finished goods, and other materials. This greatly improves factory production efficiency and logistics management capabilities.

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

ABOUT US

—

Anhui Huayide Intelligent Storage Equipment Co., Ltd. (the promitive name Anhui Huarunde logictics equipment Co., Ltd, Establised in 2009) is located in Hefei Binhu Science City, Anhui Province. It focuses on the development and promotion of intelligent logistics equipment, integrating scientific research and development, manufacturing, system integration, marketing and engineering services, committed to providing world-class internationally competitive intelligent logistics equipment, products and solutions, covered automation and intelligent manufacturing. Our products are widely used in power, automotive, chemical, logistics, public utilities, manufacturing and other industries.

We have strong technical, relying on the deep cooperation between Anhui Polytechnic University, research institute of University of Science and Technology of China and well-known enterprises. In the process of product research and development, it has absorbed a large number of advanced technologies and concepts,possesses comprehensive technical research and development capabilities of intelligent logistics equipment. We have extremely profound accomplishments project planning, intelligent manufacturing, intelligent electrical control, computer software development, and engineering project management .

We have:
professional shelf raw material strength testing machine , column load testing machines and beam load testing machines.

We have:
a complete set of shelf surface coating quality testing equipment: cross-cut testing machine, cupping testing machine, electronic magnetic thickness gauge, gloss measuring instrument, salt spray testing machine, etc.

We have passed :
IS09001 quality system certification, IS014001 environmental system certification, ISO18001 occupational health system certification. Tested by the European research institute, we passed various indicators such as safety and environmental protection, obtained CE certification, and obtained a sales pass to enter the European market.
