VFR-CC,VNA Fork-type AMR,Very Narrow Aisle Fork-type Autonomous Mobile Robot CC for Warehouse Pallet Stacking And Handling

VFR-CC ( VNA Fork-type AMR )

Very Narrow Aisle Fork-type Autonomous Mobile Robot

VFR Fork-type AMR CC

• VFR-CC is an Very Narrow Aisle fork type AMR, which is a newly designed pallet handling and storage robot for high-density, high-efficiency, and low-cost pallet storage. Its lifting height can reach 6.8m, with a load capacity of 1.5 tons within 3 meters and 1 ton at a height of 5 meters, and its performance is super strong;
• In terms of safety, it is equipped with various safety measures and sensor protection, including 2D LiDAR, 3D LiDAR, 3D camera, overload sensor, tilt sensor, safety edge contact, etc;
• In the coverage range of sensor scanning, it covers the four spaces of the front, rear, left, and right sides of the door frame, as well as the low space of the front and rear of the chassis; Support the "VFR Large and Small Vehicle Storage" mode, where large vehicles are loaded and unloaded, small vehicles are put in and out of the warehouse, with division of labor and efficient operation

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

Performance Characteristics

—

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

VFR-CC Advantages

—

Equipped with multiple safety measures and sensors, multiple measures ensure safety.

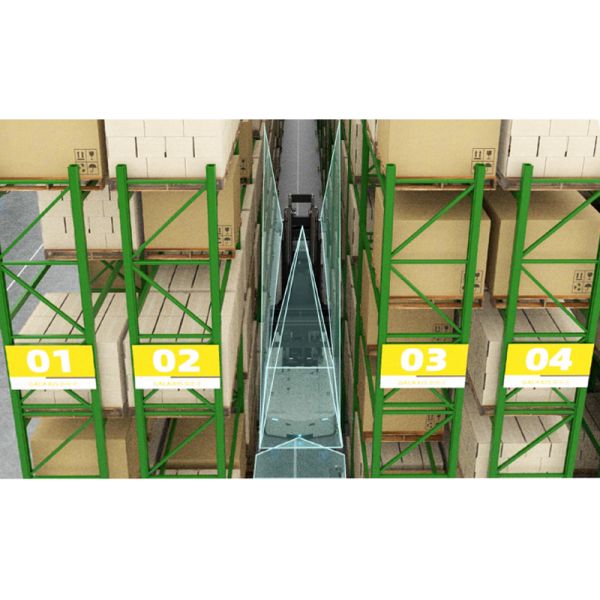

Scan the surrounding space in all directions to ensure safety.

The roadway is 1.8m wide, with a lifting height of 6.8m.

It can carry a load of 1.5 tons within 3 meters and a load of 1 ton at a height of 5 meters,

making the load even stronger.

● Narrow alleyway ● Pick up immediately upon arrival ● Accuracy ± 5mm
● Complies with the international standard IS03691-4. Overload alarm, cargo height alarm, extended obstruction alarm, gantry tilt alarm, high-altitude obstacle avoidance alarm
● Intelligent recognition tray, adaptive drive wheel pressure adjustment

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

Product Application

—

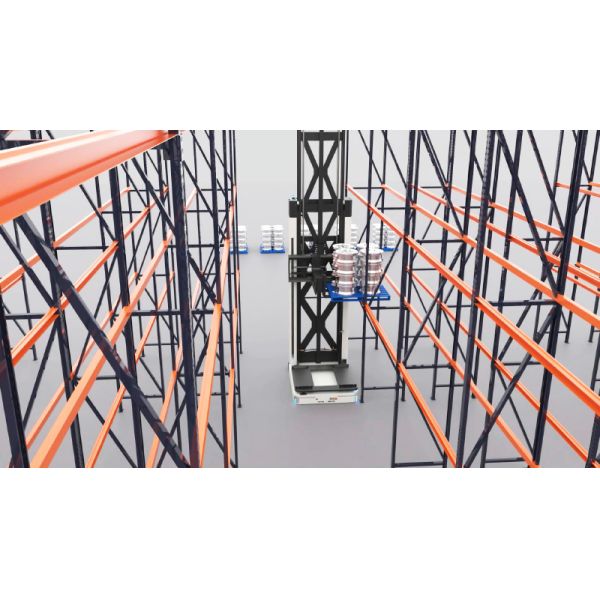

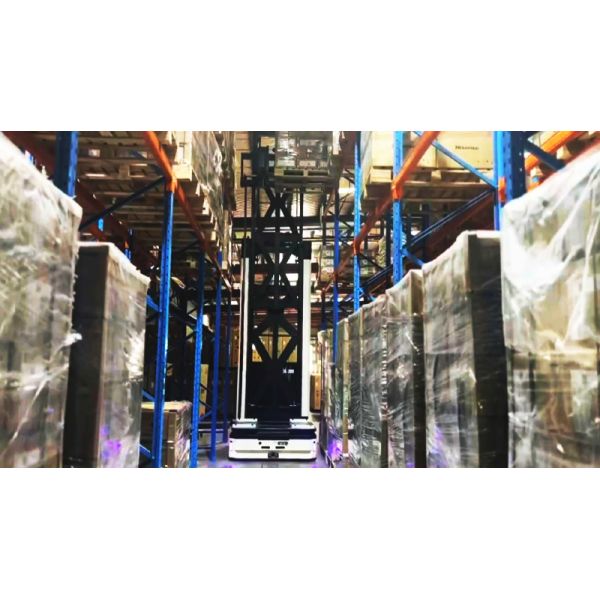

Very narrow aisle high lift

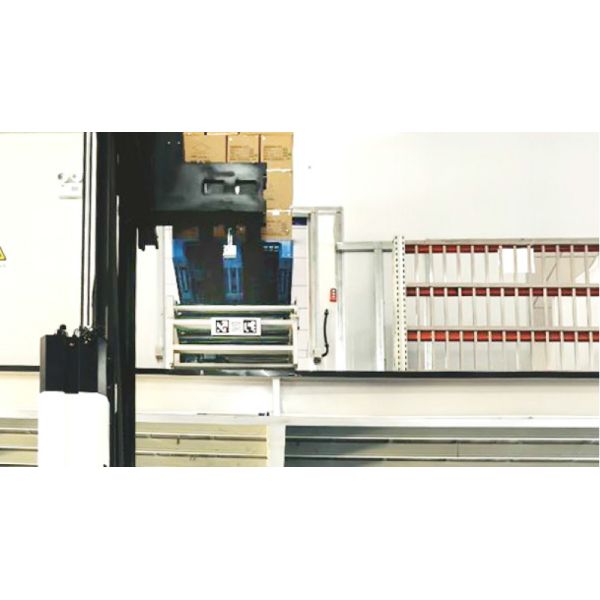

Cross layer conveyor line docking

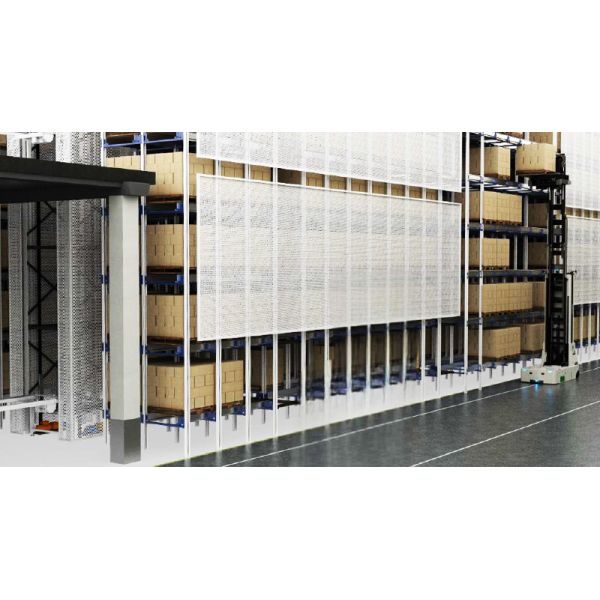

Four Way Radio Shuttle Cart AS/RS up and down rack

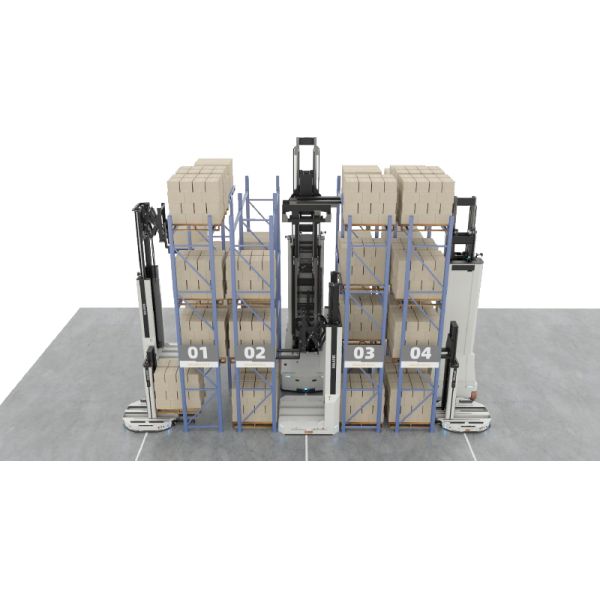

Very narrow aisle large and small car AS/RS

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

VFR Advantages

—

VNA Fork-type AMR Advantages

Very Narrow Aisle Fork-type Autonomous Mobile Robot

Rich application scenarios: not only can it seamlessly connect with the ground pallet, but it can also be flexibly lifted to accurately dock with various connection ports, and can be extended to high positions to achieve efficient docking with heavy duty pallet rack; Seamless coordination with elevators ensures safe, timely, and fully automated operation within warehouse facilities.
Intelligence: The laser radar intelligently determines the angle of the pallet fork hole and autonomously corrects it to complete the pallet fork removal.
Security and stability: Considering the complexity of scene security from all aspects, multiple types of sensors have been added, which comply with CE certification and ISO3691-4 international standards.
High precision and efficiency: Our self-developed multi-sensor fusion algorithm utilizes SLAM technology for global positioning, combined with QR codes and reflective stickers for precise positioning, with a positioning time of only 1.5 seconds.
Adaptability: Suitable for multi material pallets, with a brand new and robust chassis structure, ensuring stability under heavy loads and ground adaptability.
High density storage: extremely narrow tunnels, as low as 1.65 meters, compact body, storage density increased by 80% compared to traditional stacks; Optimize storage efficiency in the floor warehouse environment and support automated high-density access in vertical layout facilities.

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

Project Introduction

—

Pharmaceutical industry project: This smart logistics system can meet the daily delivery needs of 1646 stores for the enterprise,320000 orders are split into parts daily.

Pharmaceutical industry project: The overall plan for this project includes over 1500 pallet storage locations, more than 13000 material box storage locations, and 406 sets of mobile material racks. 100% meet the internal logistics handling needs of enterprises, with high flexibility and scalability.

Third party logistics projects in the pharmaceutical industry: Improve the efficiency of cargo collection and delivery through highly automated and intelligent logistics systems. The logistics system can build a logistics warehousing and distribution network.

Image and Vision Industry Projects:
• All models adopt the SLAM+QR code navigation method to reduce the impact of QR codes on the ground.
• Seamless integration of production line shelves, conveyor lines, and other equipment to improve efficiency.
• RCS hybrid scheduling, multiple models running in parallel to improve site energy efficiency.

Home textile industry project: Implement intelligent scheduling of logistics vehicles in the park, connect logistics systems in four storage areas and one workshop, and achieve automated logistics operations within the factory.

VNA Fork-Type AMR· AMR Autonomous Mobile Robot · Made In China

ABOUT US

—

Anhui Huayide Intelligent Storage Equipment Co., Ltd. (the promitive name Anhui Huarunde logictics equipment Co., Ltd, Establised in 2009) is located in Hefei Binhu Science City, Anhui Province. It focuses on the development and promotion of intelligent logistics equipment, integrating scientific research and development, manufacturing, system integration, marketing and engineering services, committed to providing world-class internationally competitive intelligent logistics equipment, products and solutions, covered automation and intelligent manufacturing. Our products are widely used in power, automotive, chemical, logistics, public utilities, manufacturing and other industries.

We have strong technical, relying on the deep cooperation between Anhui Polytechnic University, research institute of University of Science and Technology of China and well-known enterprises. In the process of product research and development, it has absorbed a large number of advanced technologies and concepts,possesses comprehensive technical research and development capabilities of intelligent logistics equipment. We have extremely profound accomplishments project planning, intelligent manufacturing, intelligent electrical control, computer software development, and engineering project management .

We have:
professional shelf raw material strength testing machine , column load testing machines and beam load testing machines.

We have:
a complete set of shelf surface coating quality testing equipment: cross-cut testing machine, cupping testing machine, electronic magnetic thickness gauge, gloss measuring instrument, salt spray testing machine, etc.

We have passed :
IS09001 quality system certification, IS014001 environmental system certification, ISO18001 occupational health system certification. Tested by the European research institute, we passed various indicators such as safety and environmental protection, obtained CE certification, and obtained a sales pass to enter the European market.
